BRAKE (FRONT)  FRONT DISC BRAKE PAD  COMPONENTS

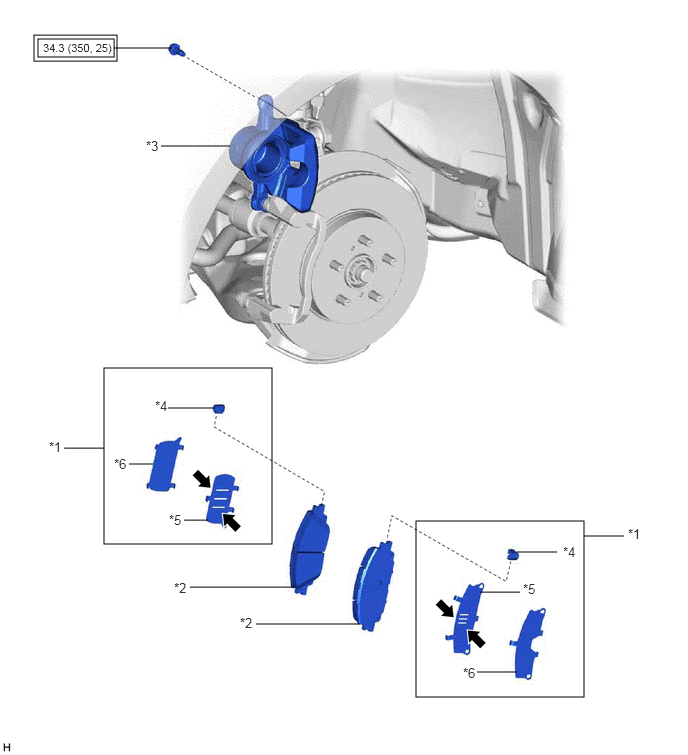

ILLUSTRATION

0.396,0.406 1.188,0.594 0.792,0.188 0.354,0.365 1.219,0.635 0.865,0.271 1.083,3.833 2.833,5.667 1.75,1.833 4.333,5.427 6.083,7.26 1.75,1.833 1.188,0.5 1.792,0.5 false 1.677,1.521 2.396,1.521 false 2.24,4.25 1.75,4.25 false 1.594,4.833 1.344,4.833 false 2.167,5.417 1.917,5.417 false 1.083,4.667 0.667,4.667 false 5.802,5.75 5.385,5.75 false 5.417,6.167 5,6.167 false 5.385,7 4.969,7 false 6.5,5.583 6.083,5.583 false 3.063,6.115 1.979,6.115 false 3.75,6.5 2.667,6.5 false 0.448,0.427 2.167,0.583 1.719,0.156 8 false 34.3 (350, 25) 1.521,1.438 1.833,1.635 0.313,0.198 10 false *3 1.615,4.146 1.927,4.344 0.313,0.198 10 false *4 0.51,4.573 0.823,4.771 0.313,0.198 10 false *1 1.188,4.75 1.5,4.948 0.313,0.198 10 false *6 1.76,5.333 2.073,5.531 0.313,0.198 10 false *5 1.813,6.042 2.125,6.24 0.313,0.198 10 false *2 2.5,6.406 2.813,6.604 0.313,0.198 10 false *2 5.448,6.052 5.76,6.25 0.313,0.198 10 false *5 4.823,6.927 5.135,7.125 0.313,0.198 10 false *6 5.865,5.667 6.177,5.865 0.313,0.198 10 false *4 6.542,5.479 6.854,5.677 0.313,0.198 10 false *1

*1	FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT	*2	FRONT DISC BRAKE PAD
*3	FRONT DISC BRAKE CYLINDER ASSEMBLY	*4	FRONT DISC BRAKE PAD WEAR INDICATOR PLATE
*5	FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*6	FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		Disc brake grease
