BRAKE (FRONT)  FRONT BRAKE  DISASSEMBLY

0.552,1.906 0.646,1.906 0.646,1.906 0.969,1.51 false 0.365,1.813 0.677,1.969 0.313,0.156 10 false *a

*a

Cloth

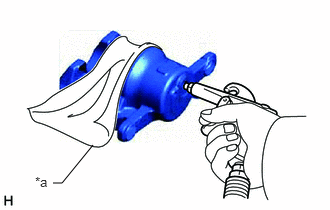

Place a piece of cloth between the front disc brake piston and front disc brake cylinder.

Apply compressed air to remove the front disc brake piston from the front disc brake cylinder.

CAUTION:

·

Do not hold the front disc brake cylinder with any part of your hand between the front disc brake cylinder and front disc brake piston.

·

Do not place any part of your hand in front of the front disc brake piston when using compressed air as a severe injury may result.

NOTICE:

Do not allow any brake fluid to spatter.

0.479,0.76 0.667,0.76 0.667,0.76 1.583,1.313 true 0.323,0.667 0.635,0.865 0.313,0.198 10 false *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the front disc brake cylinder.

NOTICE:

Be careful not to damage the front disc brake cylinder.

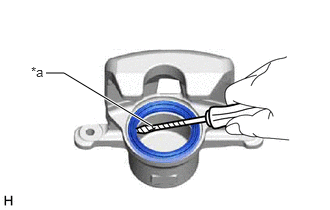

2.344,1.875 2.094,1.875 2.094,1.875 1.635,1.177 true 2.396,1.792 2.708,1.99 0.313,0.198 10 false *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the front disc brake cylinder.

NOTICE:

Do not damage the inner surface or piston seal groove of the front disc brake cylinder.
