NR Series BATTERY / CHARGING  GENERATOR  REASSEMBLY


PROCEDURE

Hide 27310B 1.INSTALL GENERATOR DRIVE END FRAME BEARING

a.

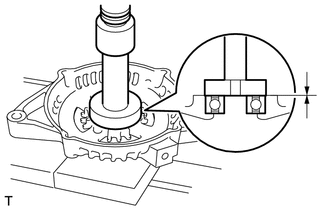

A237642
1.073,0.792 0.458,0.323 0.458,0.323 0.938,1.042 false 2.563,0.563 3.021,0.292 3.021,0.292 2.771,0.917 false 0.146,0.25 0.469,0.51 0.323,0.26 10 false SST 3.073,0.219 3.396,0.479 0.323,0.26 10 false SST

Using SST and a press, install a new generator drive end frame bearing.

SST
09950-60010  (09951-00470)
09950-70010  (09951-07100)


b.

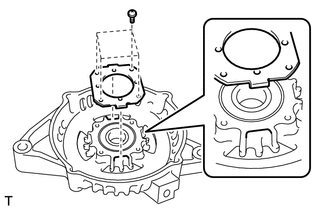

A347477
1.896,0.406 2.25,0.406 2.25,0.406 2.688,0.896 true 2.188,2.031 2.458,2.031 2.458,2.031 2.677,1.365 true 1.719,0.292 2.031,0.448 0.313,0.156 10 false *a 2.031,1.927 2.344,2.083 0.313,0.156 10 false *b
*a Tab
*b Cutout


Fit the tabs of the retainer plate into the cutouts of the generator drive end frame to install the retainer plate.


c.

Install the 4 screws.

Torque:
2.3 N*m (23 kgf*cm, 20 in.*lbf)


Hide 27330 2.INSTALL GENERATOR ROTOR ASSEMBLY

a.

Place the generator drive end frame on the generator pulley with clutch.


b.
A238333

Install the generator rotor assembly to the generator drive end frame.


Hide 27360 3.INSTALL GENERATOR COIL ASSEMBLY

a.

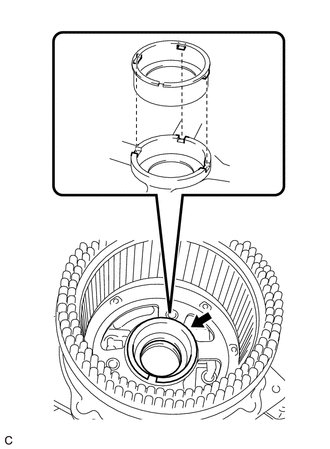

A314531
1.938,0.5 2.448,0.5 true 1.927,1.448 2.438,1.448 true 2.49,0.417 2.802,0.573 0.313,0.156 10 false *a 2.479,1.385 2.792,1.542 0.313,0.156 10 false *b
*a Protrusion
*b Groove


Install a new bearing cover packing.

NOTICE:

Align the protrusions of the bearing cover packing with the grooves of the generator coil assembly when installing.



b.
A285303
2.646,0.563 2.813,0.177 2.813,0.177 3.042,0.177 true 1.188,0.688 0.948,0.302 0.948,0.302 0.719,0.302 false 0.573,0.198 0.885,0.354 0.313,0.156 10 false *a 3.073,0.052 3.385,0.208 0.313,0.156 10 false *a
*a 21 mm Deep Socket Wrench


Using a 21 mm deep socket wrench and press, slowly press in the generator coil assembly.


c.

Install the 4 bolts.

Torque:
5.6 N*m (57 kgf*cm, 50 in.*lbf)


Hide 27370 4.INSTALL GENERATOR BRUSH HOLDER ASSEMBLY

a.

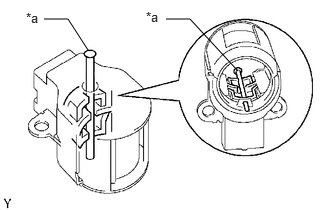

A153827C22
2.479,0.74 1.979,0.198 1.979,0.198 1.729,0.198 false 0.917,0.521 0.708,0.198 0.708,0.198 0.458,0.198 false 1.521,0.094 1.833,0.313 0.313,0.219 10 false *a 0.271,0.104 0.583,0.323 0.313,0.219 10 false *a
*a Pin (1.0 mm)


While pushing the 2 brushes into the generator brush holder assembly, insert a 1.0 mm (0.0394 in.) pin into the generator brush holder assembly hole.


b.

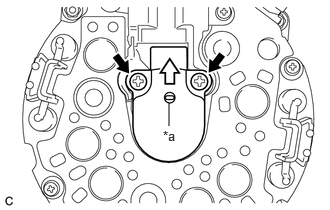

A334792C01
1.76,1.073 1.76,1.313 false 1.698,1.333 1.896,1.573 0.198,0.24 10 false *a
*a Pin (1.0 mm)
V100136

Pull out


Install the generator brush holder assembly to the generator coil assembly with the 2 screws.

Torque:
1.8 N*m (18 kgf*cm, 16 in.*lbf)


c.

Pull out the pin from the generator brush holder assembly hole.


Hide 27387B 5.INSTALL GENERATOR TERMINAL INSULATOR

a.

Install the generator terminal insulator to the generator coil assembly.

NOTICE:

Be sure to install the generator terminal insulator in the correct orientation.



Hide 27039 6.INSTALL GENERATOR REAR END COVER

a.

Install the generator rear end cover to the generator coil assembly with the 3 bolts.

Torque:
4.6 N*m (47 kgf*cm, 41 in.*lbf)


Hide 27415 7.INSTALL GENERATOR PULLEY WITH CLUTCH

a.

Secure the generator assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.



b.

Temporarily install a new generator pulley with clutch to the rotor shaft.


c.

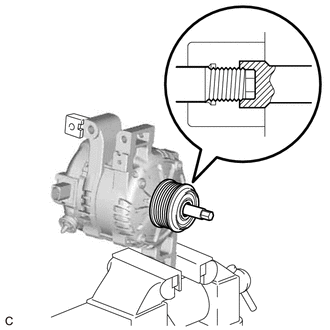

A351884
1.573,0.302 1.813,0.302 1.813,0.302 2.073,0.698 false 3.01,1.698 3.01,1.063 false 2.521,2.25 2.219,2.25 false 1.406,0.219 1.719,0.375 0.313,0.156 10 false *a 2.865,1.771 3.313,2 0.448,0.229 10 false SST A 2.573,2.177 3.021,2.406 0.448,0.229 10 false SST A
*a Rotor Shaft


Fit the rotor shaft end into SST (A).

SST
09820-70010  (09821-70010, 09822-70010)


d.

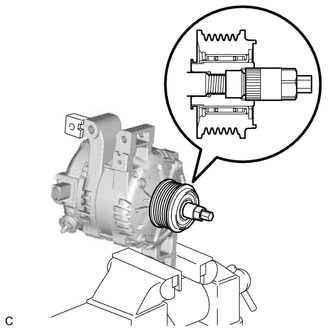

A351885
2.833,1.719 2.833,1.031 false 2.25,2.479 2.094,2.479 2.094,2.479 2.021,2.271 false 1.583,0.406 2.052,0.406 false 1.427,0.333 1.74,0.49 0.313,0.156 10 false *1 2.698,1.771 3.208,2 0.51,0.229 10 false SST B 2.313,2.417 2.823,2.646 0.51,0.229 10 false SST B
*1 Generator Pulley with Clutch


Fit SST (B) to the generator pulley with clutch.


e.
A351887
0.302,1.958 0.531,1.958 0.531,1.958 0.719,2.25 false 2.552,0.698 2.906,0.698 false 2.156,1.875 2.438,1.479 2.438,1.479 2.76,1.479 true 2.313,1.948 2.49,1.729 2.49,1.729 2.823,1.729 true 1.927,2.313 2.188,2.49 0.26,0.177 10 true *a 0.135,1.875 0.448,2.031 0.313,0.156 10 false *b 2.948,0.615 3.26,0.771 0.313,0.156 10 false *c 2.865,1.646 3.365,1.844 0.5,0.198 10 false SST A 2.823,1.396 3.323,1.594 0.5,0.198 10 false SST B
*a Torque Wrench Fulcrum Length
*b Turn
*c Hold


Using a 17 mm union nut wrench, tighten the generator pulley with clutch by turning SST (B) as shown in the illustration.

Torque:
Specified tightening torque : 80 N*m (816 kgf*cm, 59 ft.*lbf)

HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 400 mm (1.312 ft.)): 74.4 N*m (759 kgf*cm, 55 ft.*lbf)




f.

Remove SST (A) and (B) from the generator pulley with clutch.


g.

Check that the generator pulley with clutch rotates smoothly.


h.

Remove the generator assembly from the vise.


Hide 27416 8.INSTALL GENERATOR PULLEY CAP

a.

Install a new generator pulley cap to the generator pulley with clutch.
