NR Series STARTING  RELAY  INSPECTION


PROCEDURE

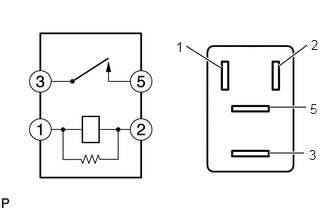

Hide 28300 1.INSPECT ST RELAY

a.
A232574E26
2.302,0.708 1.938,0.479 true 2.906,0.688 3.198,0.469 true 2.813,1.115 3.188,1.115 true 2.802,1.594 3.167,1.594 true 1.833,0.406 1.938,0.563 0.104,0.156 10 1 3.24,0.385 3.344,0.542 0.104,0.156 10 2 3.219,1.531 3.323,1.729 0.104,0.198 10 3 3.229,1.052 3.344,1.188 0.115,0.135 10 5

Check the resistance.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
Battery voltage applied to terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the ST relay.
