NR Series STARTING  IGNITION SWITCH  INSPECTION

1.802,2.906 1.76,2.552 1.76,2.552 1.594,2.552 true 2.229,2.563 2.031,2.563 2.031,2.563 1.927,2.906 true 2.26,2.969 2.635,2.969 true 2.469,3.302 2.26,3.302 2.26,3.302 2.083,3.042 true 0.844,2.438 1.219,2.667 0.375,0.229 10 false *a 0.75,0.583 1.063,0.74 0.313,0.156 10 false *b 1.396,0.094 1.708,0.25 0.313,0.156 10 false *c 2.104,0.198 2.417,0.354 0.313,0.156 10 false *d 2.635,0.594 2.948,0.75 0.313,0.156 10 false *e 1.313,2.479 1.771,2.677 0.458,0.198 10 false ST1 2.26,2.469 2.719,2.667 0.458,0.198 10 false ACC 2.521,3.208 2.979,3.406 0.458,0.198 10 false AM1 2.656,2.885 3.115,3.083 0.458,0.198 10 false IG1

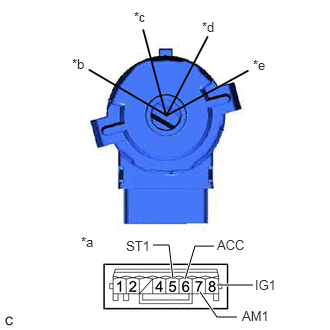

*a	Component without harness connected (Ignition or Starter Switch Assembly)
*b	LOCK
*c	ACC
*d	ON
*e	START

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Between all terminals	LOCK	10 kΩ or higher
6 (ACC) - 7 (AM1)	ACC	Below 1 Ω
6 (ACC) - 7 (AM1) - 8 (IG1)	ON	Below 1 Ω
5 (ST1) - 7 (AM1) - 8 (IG1)	START	Below 1 Ω

If the result is not as specified, replace the ignition or starter switch assembly.
