RM3660EC _51 Engine / Hybrid System _080759 NR Series STARTING _0392366 ENGINE SWITCH A

NR Series STARTING ENGINE SWITCH REMOVAL

PROCEDURE

Hide Display 55434F 1.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0052,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0052,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0052,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0052,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 89611 2.REMOVE ENGINE SWITCH

a.

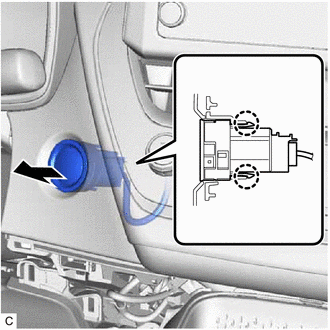

A430850

Disengage the 2 claws as shown in the illustration.

b.

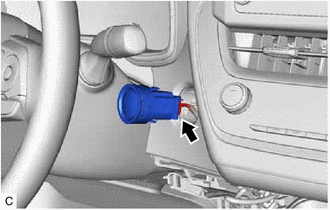

A430851

Disconnect the engine switch connector to remove the engine switch.
