NR Series LUBRICATION  OIL PRESSURE SWITCHING VALVE  INSTALLATION

2.25,1.313 2.448,0.896 2.448,0.896 2.667,0.896 false 2.719,0.792 3.031,0.948 0.313,0.156 10 false *a

*a

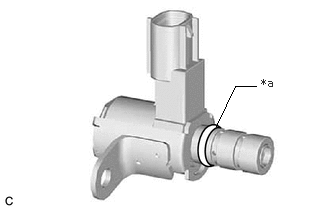

O-Ring

Apply a small amount of engine oil to the O-ring of the oil pressure switching valve assembly.

1.802,1.094 1.969,0.76 1.969,0.76 2.198,0.76 true 2.25,0.635 2.469,0.833 0.219,0.198 10 true *a 1.813,1.563 2.031,1.76 0.219,0.198 10 true *b

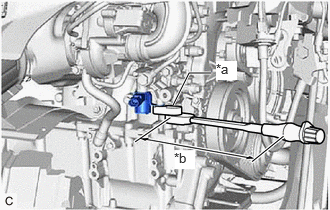

*a	10 mm Union Nut Wrench
*b	Torque Wrench Fulcrum Length

Using a 10 mm union nut wrench, install the oil pressure switching valve assembly to the oil pump relief valve housing assembly with the bolt.

Torque:

Specified tightening torque : 8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTICE:

·

When reusing the oil pressure switching valve assembly, inspect the O-ring.

·

Make sure that the O-ring is not cracked or does not move out of place during installation.

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 8.0 N*m (82 kgf*cm, 71 in.*lbf)
