NR Series LUBRICATION  OIL PRESSURE SWITCHING VALVE  INSPECTION

0.917,1.542 1.188,1.542 1.188,1.542 1.573,1.177 true 2.406,1.521 2.156,1.521 2.156,1.521 1.865,1.177 true 0.76,1.396 0.938,1.615 0.177,0.219 11 false 1 2.479,1.385 2.656,1.604 0.177,0.219 11 false 2 0.052,0.042 0.365,0.198 0.313,0.156 10 false *a

*a	Component without harness connected (Oil Pressure Switching Valve Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	13 to 17 Ω

If the result is not as specified, replace the oil pressure switching valve assembly.

1.896,0.667 2.417,1.167 2.417,1.167 2.583,1.167 true 1.542,0.677 1.115,1.167 1.115,1.167 0.948,1.167 true 0.094,0.073 0.354,0.281 0.26,0.208 10 false *a 2.656,1.083 2.865,1.302 0.208,0.219 10 false 2 0.802,1.063 1.021,1.292 0.219,0.229 10 false 1

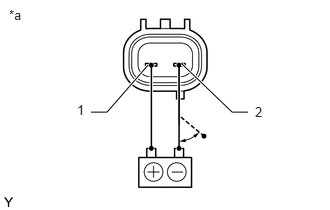

*a	Component without harness connected (Oil Pressure Switching Valve Assembly)

Connect a battery positive (+) lead to terminal 1 and a negative (-) lead to terminal 2.

Check that a clicking sound is heard from the oil pressure switching valve assembly.

NOTICE:

·

Perform this test within 10 seconds to prevent the coil from burning out.

·

Always switch the voltage on and off at the battery side, not the oil pressure switching valve assembly side.

If the result is not as specified, replace the oil pressure switching valve assembly.
