NR Series ENGINE CONTROL  AIR FUEL RATIO SENSOR(for Sensor 2)  INSTALLATION

2.188,0.917 1.958,0.917 1.958,0.917 1.781,0.594 true 0.938,0.677 1.167,0.865 0.229,0.188 10 true *a 2.208,0.844 2.521,1.042 0.313,0.198 10 true SST

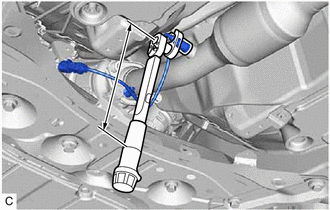

*a	Torque Wrench Fulcrum Length

Using SST, install the air fuel ratio sensor to the front exhaust pipe assembly.

SST

09224-00012

Torque:

Specified tightening torque : 44 N*m (449 kgf*cm, 32 ft.*lbf)

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

37.7 N*m (384 kgf*cm, 28 ft.*lbf)

0.677,0.229 0.99,0.385 0.313,0.156 10 false *a 2.469,0.219 2.938,0.521 0.469,0.302 10 false *b 0.24,1.573 0.552,1.729 0.313,0.156 10 false *c 2.063,1.573 2.375,1.729 0.313,0.156 10 false *c

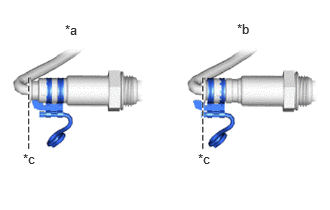

*a	Correct
*b	Incorrect
*c	Standard Position

Install the wire harness clamp bracket to the air fuel ratio sensor.

NOTICE:

Align the edge of the wire harness clamp bracket and air fuel ratio sensor as shown in the illustration.
