NR Series ENGINE CONTROL  AIR FUEL RATIO SENSOR(for Sensor 2)  INSPECTION

1,0.5 1.167,0.5 1.167,0.5 1.417,0.917 true 1,1.833 1.167,1.833 1.167,1.833 1.417,1.417 true 2.083,0.917 2.333,0.5 2.333,0.5 2.5,0.5 true 0.073,0.083 0.469,0.333 0.396,0.25 10 false *a 0.771,0.427 1.167,0.677 0.396,0.25 10 false +B 0.635,1.76 1.208,2.01 0.573,0.25 10 false A1B- 2.563,0.427 3.063,0.667 0.5,0.24 10 false HA1B

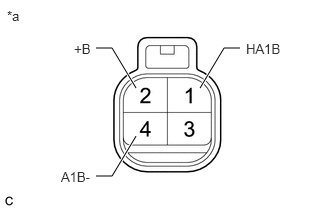

*a	Component without harness connected (Air Fuel Ratio Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (HA1B) - 2 (+B)	20°C (68°F)	2 to 6 Ω
1 (HA1B) - 4 (A1B-)	Always	10 kΩ or higher

If the result is not as specified, replace the air fuel ratio sensor.
