MANIFOLD ABSOLUTE PRESSURE SENSOR
G
NR Series ENGINE CONTROL MANIFOLD ABSOLUTE PRESSURE SENSOR INSPECTION
PROCEDURE
89421L
1.INSPECT NO. 2 TURBO PRESSURE SENSOR
a.
1.292,0.854 1.292,0.354
1.292,0.354 1.125,0.354
true
1.875,0.833 1.875,0.333
1.875,0.333 2.052,0.333
true
0.104,0.094 0.417,0.25
0.313,0.156
10
false
*a
0.76,0.281 1.177,0.448
0.417,0.167
10
false
THIM
2.104,0.26 2.417,0.417
0.313,0.156
10
false
E2

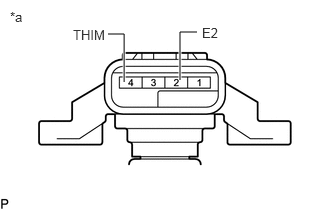

| *a | Component without harness connected
(No. 2 Turbo Pressure Sensor) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 4 (THIM) - 2 (E2) -20°C (-4°F) 13.8 to 18.6 kΩ 20°C (68°F) 2.09 to 2.81 kΩ 80°C (176°F) 0.274 to 0.370 kΩ
If the result is not as specified, replace the No. 2 turbo pressure sensor.
