RM3660EC _51 Engine / Hybrid System _080777 NR Series ENGINE CONTROL _0392346 MANIFOLD ABSOLUTE PRESSURE SENSOR G

NR Series ENGINE CONTROL  MANIFOLD ABSOLUTE PRESSURE SENSOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 89421K 1.INSPECT NO. 1 TURBO PRESSURE SENSOR

a.

Check the terminal voltage.

i.

Disconnect the No. 1 turbo pressure sensor connector.


ii.

Turn the ignition switch to ON.


iii.
A347474C47
0.25,1.948 0.688,2.219 0.438,0.271 1.083,2.792 1.271,2.281 true 1.615,2.813 1.594,2.302 true 2.156,2.813 1.906,2.302 true 0.188,0.177 0.646,0.375 0.458,0.198 10 false *a 0.344,2 0.802,2.198 0.458,0.198 10 false C23 0.948,2.844 1.406,3.042 0.458,0.198 10 false PIM 1.542,2.844 2,3.042 0.458,0.198 10 false E2 2.104,2.844 2.563,3.042 0.458,0.198 10 false VC

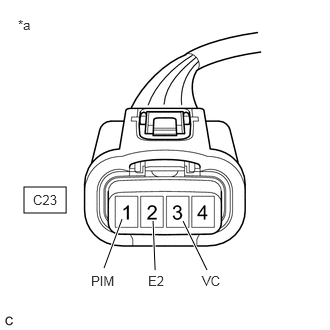

*a Front view of wire harness connector
(to No. 1 Turbo Pressure Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
C23-3(VC) - C23-2(E2) Ignition switch ON 4.75 to 5.25 V
C23-1(PIM) - C23-2(E2) 3.0 to 5.25 V


If the result is not as specified, repair or replace the wire harness or connector.



b.

Check the turbo pressure.

i.

Connect the GTS to the DLC3.


ii.

Turn the ignition switch to ON.


iii.

Turn the GTS on.


iv.

Enter the following menus: Powertrain / Engine / Data List / Boost Pressure Sensor.

Powertrain > Engine > Data List
Tester Display
Boost Pressure Sensor
50003 372 269

v.

According to the display on the GTS read the Data List.

OK:

The value is approximately equal to atmospheric pressure.


HINT:
·

Standard atmospheric pressure is 101 kPa (abs) (758 mmHg (abs)).

·

For every 100 m (328 ft.) increase in altitude, pressure drops by 1 kPa (7.5 mmHg). This varies with the weather.
