NR Series ENGINE CONTROL  ENGINE OIL TEMPERATURE SENSOR  INSPECTION


PROCEDURE

Hide 89429F 1.INSPECT ENGINE OIL TEMPERATURE SENSOR

CAUTION:
A342307

·

Do not put your hands into the water that has been heated for the inspection.

·

Touching the heated water could result in burns.



a.

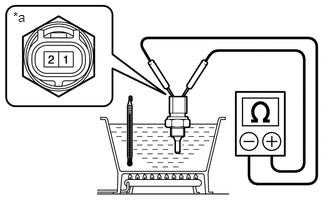

A171057C01
0.135,0.094 0.323,0.281 0.188,0.188 10 false *a
*a Component without harness connected
(Engine Oil Temperature Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 30°C (86°F) 2.647 to 3.021 kΩ


NOTICE:

If checking the engine oil temperature sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the engine oil temperature sensor.


If the result is not as specified, replace the engine oil temperature sensor.
