RM3660EC _51 Engine / Hybrid System _080777 NR Series ENGINE CONTROL _0392343 ENGINE COOLANT TEMPERATURE SENSOR A

NR Series ENGINE CONTROL ENGINE COOLANT TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of engine coolant temperature sensor	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 89422A 2.REMOVE ENGINE COOLANT TEMPERATURE SENSOR

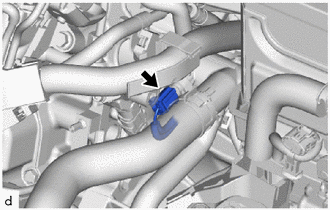

Disconnect the engine coolant temperature sensor connector.

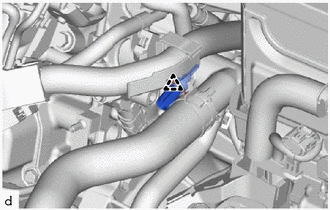

Remove the clip and engine coolant temperature sensor from the water outlet.

NOTICE:: If the engine coolant temperature sensor has been struck or dropped, replace it.
