NR Series ENGINE CONTROL  THROTTLE BODY  INSPECTION

1.958,1.906 2.125,1.906 2.125,1.906 2.125,1.073 true 2.792,1.906 2.625,1.906 2.625,1.906 2.625,1.073 true 0.052,0.052 0.365,0.208 0.313,0.156 10 false *a 1.719,1.813 2.031,2.01 0.313,0.198 10 false M+ 2.854,1.813 3.167,2.01 0.313,0.198 10 false M-

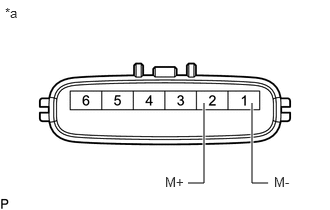

*a	Component without harness connected (Throttle Body with Motor Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (M-) - 2 (M+)	20°C (68°F)	0.3 to 100 Ω

If the result is not as specified, replace the throttle body with motor assembly.
