NR Series ENGINE CONTROL THROTTLE BODY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 22030 2.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

0.417,2 0.583,2 0.583,2 0.698,1.583 true 1.875,2.021 1.719,2.021 1.719,2.021 1.542,1.75 true 0.198,1.885 0.385,2.052 0.188,0.167 10 true *1 1.896,1.927 2.083,2.094 0.188,0.167 10 true *2

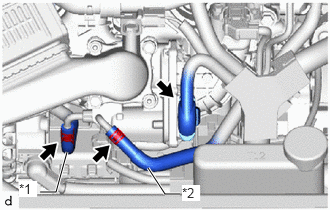

*1	No. 1 Water By-pass Hose
*2	No. 2 Water By-pass Hose

Disconnect the throttle body with motor assembly connector.

Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body with motor assembly.

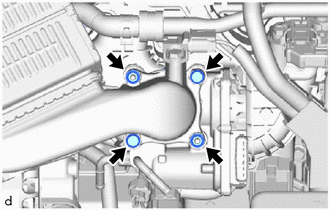

Remove the 2 bolts and 2 nuts.

Using an E6 "TORX" socket wrench, remove the 2 stud bolts.

NOTICE:: Do not drop the throttle body with motor assembly.

Separate the intercooler assembly and remove the throttle body with motor assembly from the intake manifold.

NOTICE:: If the throttle body with motor assembly has been struck or dropped, replace it.

Hide Display 22271 3.REMOVE THROTTLE BODY GASKET

1.146,1.427 1.365,1.604 0.219,0.177 10 true *a 1.521,1.573 1.698,1.74 0.177,0.167 10 true *b

*a	Intercooler Assembly Side
*b	Intake Manifold Side

Remove the throttle body gasket from the intercooler assembly.

Remove the throttle body gasket from the intake manifold.
