NR Series ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE(for Exhaust Side)  COMPONENTS

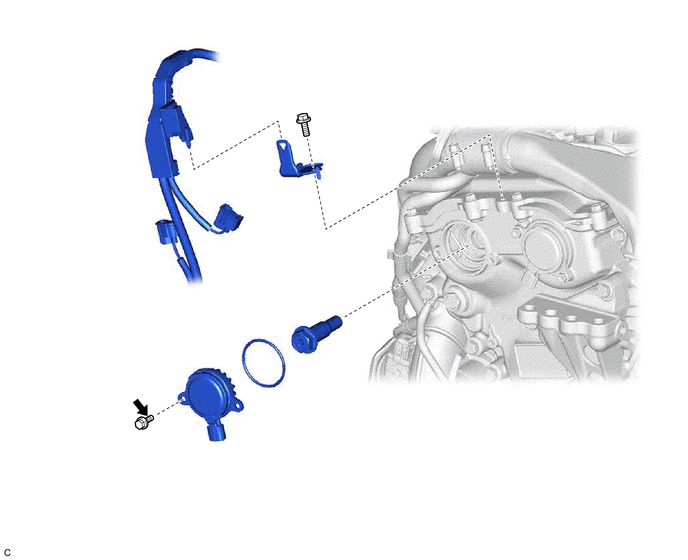

ILLUSTRATION

3.865,2.063 3.865,1.646 false 3.802,2.063 4.115,2.219 0.313,0.156 10 false *1 3.781,0.573 4.385,0.927 0.604,0.354 10 false x 7

*1

REAR ENGINE UNDER COVER RH

-

-

ILLUSTRATION

3.469,0.729 4.542,0.938 1.073,0.208 3.448,4.135 4.198,4.333 0.75,0.198 1.083,4.844 1.833,5.042 0.75,0.198 0.979,1.552 1.531,1.552 false 3.135,1.177 3.135,0.823 3.135,0.823 3.469,0.823 false 3,2.208 3,1.823 false 2.802,4.406 2.802,4.021 false 3.448,4.24 3.146,4.24 3.146,4.24 3.146,3.667 false 2.24,4.969 2.24,4.583 false 1.438,4.844 1.438,4.458 false 3.469,4.365 3.781,4.521 0.313,0.156 10 false *1 2.177,4.979 2.49,5.135 0.313,0.156 10 false *2 2.635,4.438 3.24,4.771 0.604,0.333 10 false ●*3 0.771,1.479 1.083,1.635 0.313,0.156 10 false *4 2.948,2.229 3.26,2.385 0.313,0.156 10 false *5 0.76,4.875 1.469,5.167 0.708,0.292 10 false ●★ 3.552,0.76 4.802,1.167 1.25,0.406 8 false 8.0 (82, 71 in.*lbf) 3.521,4.167 4.313,4.51 0.792,0.344 8 false 95 (969, 70) 1.563,4.406 1.906,4.729 0.344,0.323 10 false x 2 1.167,4.875 1.958,5.219 0.792,0.344 8 false 10 (102, 7)

*1	CAMSHAFT TIMING GEAR BOLT	*2	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side)
*3	O-RING	*4	ENGINE WIRE
*5	WIRE HARNESS CLAMP BRACKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Adhesive 1324	★	Precoated part
