AUDIO / VIDEO WINDOW GLASS ANTENNA WIRE ON-VEHICLE INSPECTION
PROCEDURE
1.INSPECT WINDOW GLASS ANTENNA WIRE
a.
0.625,1.198 0.792,0.75
false
1.135,1.573 1.313,1.927
false
2.281,1.656 2.177,1.292
false
0.74,0.563 1.052,0.719
0.313,0.156
10
false
*a
1.292,1.99 1.604,2.146
0.313,0.156
10
false
*b
2.24,1.708 2.552,1.865
0.313,0.156
10
false
*c

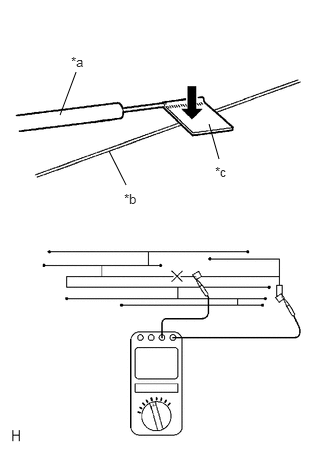

| *a | Tester Probe |
| *b | Antenna Wire |
| *c | Tin Foil |
Check the continuity of the antenna.
- HINT:
-
Check for continuity at the center of each antenna wire as shown in the illustration.
- NOTICE:
- ·
When cleaning the glass, wipe it in the direction of the wire with a soft dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients.
·When measuring resistance, wrap a piece of tin foil around the tip of the negative probe and press the foil against the wire with your finger, as shown in the illustration.
- OK:
There is continuity in the antenna.
If the result is not as specified, repair the window glass antenna wire.
