RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392321 AMPLIFIER ANTENNA A

AUDIO / VIDEO AMPLIFIER ANTENNA REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

Hide Display 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)

Hide Display 73350C 3.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)

Hide Display 4.REMOVE REAR SEATBACK ASSEMBLY RH (for Fold Down Seat Type)

Hide Display 5.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

Hide Display 6.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

Hide Display 72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

Hide Display 67917A 8.REMOVE REAR DOOR SCUFF PLATE RH (for Gasoline Model)

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0002,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0002,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0002,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0002,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0002,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67917A 9.REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0308,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0308,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0308,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0308,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0308,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 76973F 10.REMOVE REAR UNDER SIDE COVER RH (for HV Model)

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0311,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0311,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0311,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0311,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0311,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0311,

Hide Display 62331A 11.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL201906,202007,_58,_080748,_0391781,RM100000001HMCP_01_0235,202007,202101,_58,_080748,_0391781,RM100000001OKTW_01_0235,202101,202104,_58,_080748,_0391781,RM100000001TPZ8_01_0235,202104,202107,_58,_080748,_0391781,RM100000001WK0W_01_0235,202107,202205,_58,_080748,_0391781,RM100000001XPZF_01_0235,202205,202304,_58,_080748,_0391781,RM1000000022ZXD_01_0235,202304,202307,_58,_080748,_0391781,RM100000002AV14_01_0235,202307,202406,_58,_080748,_0391781,RM100000002D1KH_01_0235,202406,999999,_58,_080748,_0391781,RM100000002N5WY_01_0235,

Hide Display 62551F 12.REMOVE REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0195,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0195,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0195,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0195,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0195,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0195,

Hide Display 62471A 13.REMOVE ROOF SIDE INNER GARNISH RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0301,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0301,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0301,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0301,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0301,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0301,

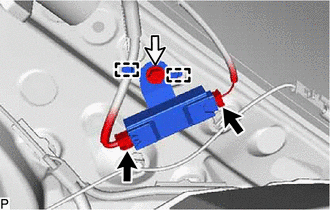

Hide Display 86300B 14.REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

Disconnect the 2 connectors.

Remove the bolt.

Disengage the 2 guides to remove the No. 1 amplifier antenna assembly.

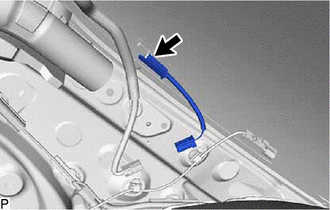

Hide Display 86101D 15.REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY

Disconnect the connector to remove the No. 3 antenna cord sub-assembly.
