K313 CVT  VALVE BODY ASSEMBLY  COMPONENTS

ILLUSTRATION

4.792,5.031 5.615,5.229 0.823,0.198 1.854,4.667 2.677,4.865 0.823,0.198 1.885,6.281 2.708,6.479 0.823,0.198 3.885,4.948 4.271,4.948 false 4.177,5.927 4.823,5.927 false 3.313,3.188 3.448,3.188 3.448,3.188 3.896,2.927 true 2.698,5.427 3.344,5.427 false 2.708,6.375 3.271,6.375 false 3.844,5.125 4.792,5.125 false 2.281,4.323 2.667,4.323 false 2.677,4.76 3.458,4.76 false 4.479,3.979 4.865,3.979 false 4.917,3.885 5.219,4.104 0.302,0.219 10 false *1 4.885,5.833 5.156,6.063 0.271,0.229 10 false *2 2.115,4.24 2.375,4.469 0.26,0.229 10 false *3 3.135,3.104 3.427,3.375 0.292,0.271 10 false *4 4.333,4.854 4.646,5.052 0.313,0.198 10 false *5 2.521,5.344 2.792,5.583 0.271,0.24 10 false *6 2.333,5.333 2.51,5.542 0.177,0.208 10 false ● 3.385,6.271 3.74,6.5 0.354,0.229 10 false x 3 4.875,5.063 5.667,5.26 0.792,0.198 8 false 10.8 (110, 8) 1.938,4.698 2.729,4.906 0.792,0.208 8 false 10.8 (110, 8) 1.969,6.302 2.76,6.5 0.792,0.198 8 false 10.8 (110, 8) 3.563,4.656 3.917,4.885 0.354,0.229 10 false x 13

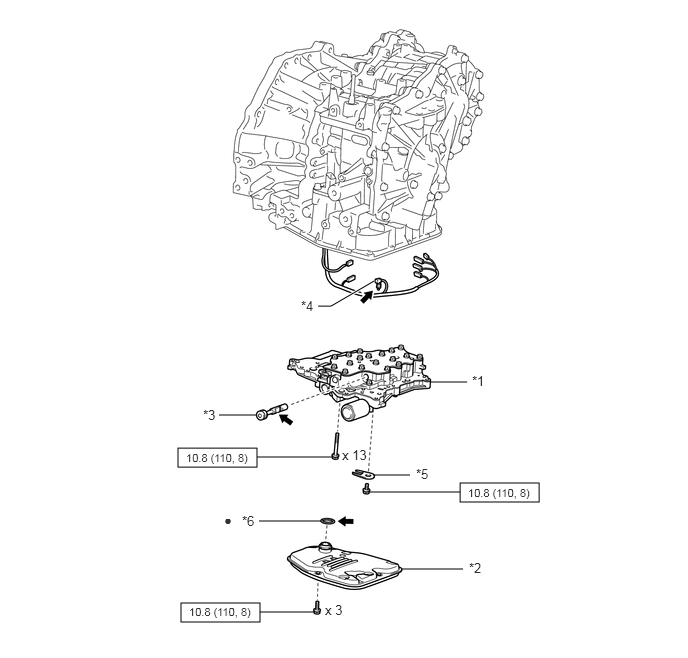

*1	TRANSMISSION VALVE BODY ASSEMBLY	*2	OIL STRAINER ASSEMBLY
*3	MANUAL VALVE	*4	TEMPERATURE SENSOR
*5	TEMPERATURE SENSOR CLAMP	*6	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine CVT Fluid FE	-	-
