RM3660EC _52 Drivetrain _080728 K313 CVT _0392277 PATTERN SELECT SWITCH A

K313 CVT PATTERN SELECT SWITCH REMOVAL

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click hereDrivetrain>K313 (CVT)>SHIFT LEVER KNOB>REMOVAL201906,999999,_52,_080728,_0392276,RM100000001HPBQ_01_0001,

Hide Display 55606 2.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0060,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0060,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0060,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 55434F 3.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0052,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0052,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0052,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0052,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 58831A 4.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0054,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0054,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0054,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0054,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0054,

Hide Display 35970F 5.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0056,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0056,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0056,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0056,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0056,

Hide Display 84970 6.REMOVE COMBINATION SWITCH ASSEMBLY

a.

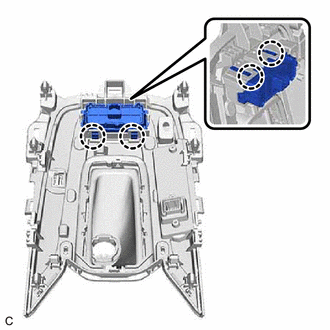

C400830

Disengage the 4 claws and remove the combination switch assembly from the position indicator housing assembly.
