K313 CVT  SHIFT LEVER KNOB  REMOVAL

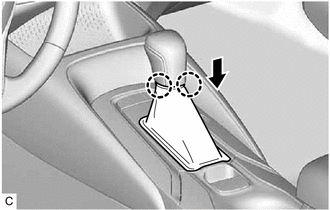

Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

0.74,1.667 0.5,1.667 0.5,1.667 0.5,1.073 true 2.625,1.969 2.365,1.969 2.365,1.969 2.24,0.99 true 0.771,1.583 0.99,1.792 0.219,0.208 10 true *a 2.688,1.875 2.885,2.052 0.198,0.177 10 true *b

*a	Clip
*b	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.

NOTICE:

Be careful not to damage the shift lever knob sub-assembly.
