K313 CVT  SHIFT LEVER  INSPECTION


PROCEDURE

Hide 1.INSPECT SHIFT LOCK CONTROL ECU (w/ Smart Entry and Start System)

HINT:

If the results of the following inspections are as specified but a malfunction has occurred, replace the shift lock control unit assembly.


a.

Inspect wire harness:

i.
C400833

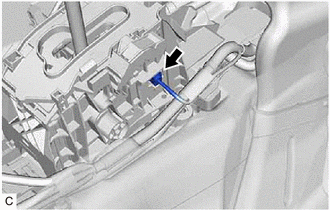

Disconnect the shift lock control ECU connector.


ii.
C269340
2.563,0.646 2.354,0.646 2.354,0.646 1.906,1.5 true 2.083,1.5 2.438,1.271 2.438,1.271 2.573,1.271 true 0.104,0.104 0.292,0.281 0.188,0.177 10 false *a 2.646,1.188 2.854,1.365 0.208,0.177 10 false IG 2.625,0.563 2.958,0.74 0.333,0.177 10 false STP
*a Front view of wire harness connector
(to Shift Lock Control ECU)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
5 (IG) - Body ground Engine switch on (IG) 11 to 14 V
Engine switch off Below 1 V
4 (STP) - Body ground Brake pedal depressed 11 to 14 V
Brake pedal released Below 1 V


If the result is not as specified, repair or replace the shift lock control ECU wire harness.


iii.
C269340
1.271,1.5 0.813,1.125 0.813,1.125 0.667,1.125 true 0.104,0.104 0.292,0.281 0.188,0.177 10 false *a 0.521,1.063 0.729,1.24 0.208,0.177 10 false E
*a Front view of wire harness connector
(to Shift Lock Control ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (E) - Body ground Always Below 1 Ω


If the result is not as specified, repair or replace the shift lock control ECU wire harness.



b.

Inspect shift lock solenoid:

i.
C400831

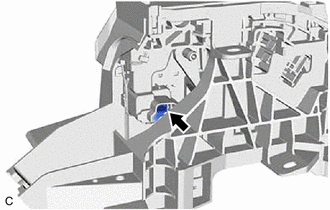

Disconnect the shift lock solenoid connector.


ii.
C322125
1.51,2.729 1.646,2.729 1.646,2.729 1.813,2.125 true 2.083,2.125 2.25,2.698 2.25,2.698 2.406,2.698 true 1.292,2.646 1.906,2.844 0.615,0.198 10 false E2 2.448,2.615 3.063,2.813 0.615,0.198 10 false P 0.115,0.094 0.729,0.292 0.615,0.198 10 false *a
*a Front view of wire harness connector
(to Shift Lock Solenoid)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (P) - 3 (E2) Shift lever in P 10 kΩ or higher
Shift lever not in P Below 1 Ω


If the result is not as specified, replace the shift lock control unit assembly.


iii.
C322125
0.958,2.604 1.083,2.604 1.083,2.604 1.365,2.156 true 1.583,2.135 1.729,2.635 1.729,2.635 2.031,2.635 true 0.604,2.552 1.219,2.75 0.615,0.198 10 false SLS+ 2.104,2.594 2.719,2.792 0.615,0.198 10 false SLS- 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Shift Lock Solenoid)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SLS+) - 2 (SLS-) Always 112 Ω


If the result is not as specified, replace the shift lock control unit assembly.



Hide 2.INSPECT SHIFT LOCK CONTROL ECU (w/o Smart Entry and Start System)

HINT:

If the results of the following inspections are as specified but a malfunction has occurred, replace the shift lock control unit assembly.


a.

Inspect wire harness:

i.
C400833

Disconnect the shift lock control ECU connector.


ii.
C327201
2.125,1.198 2.5,0.833 2.5,0.833 2.75,0.833 true 2.125,1.667 2.5,1.833 2.5,1.833 2.75,1.833 true 1.313,1.208 0.917,0.833 0.917,0.833 0.667,0.833 true 0.333,0.75 0.792,0.948 0.458,0.198 10 false ACC 2.823,0.75 3.281,0.948 0.458,0.198 10 false IG 2.823,1.76 3.281,1.958 0.458,0.198 10 false STP 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Shift Lock Control ECU)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
1 (ACC) - Body ground Ignition switch ACC 11 to 14 V
Ignition switch off Below 1 V
8 (STP) - Body ground Brake pedal depressed 11 to 14 V
Brake pedal released Below 1 V
4 (IG) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V


If the result is not as specified, repair or replace the shift lock control ECU wire harness.


iii.
C327201
1.885,1.656 2.281,2 2.281,2 2.552,2 true 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 2.625,1.917 2.938,2.115 0.313,0.198 10 false E
*a Front view of wire harness connector
(to Shift Lock Control ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7 (E) - Body ground Always Below 1 Ω


If the result is not as specified, repair or replace the shift lock control ECU wire harness.



b.

Inspect key interlock solenoid operation signal:

i.
C400833

Connect the shift lock control ECU connector.


ii.
C339731
1.896,1.208 2.229,1.813 2.229,1.813 2.531,1.813 true 0.094,0.073 0.406,0.281 0.313,0.208 10 false *a 2.594,1.719 3.115,1.979 0.521,0.26 10 false KLS+
*a Component with harness connected
(Shift Lock Control ECU)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
5 (KLS+) - Body ground Ignition switch ACC and shift lever in P Below 1 V
Ignition switch ACC and shift lever not in P 11 to 14 V


HINT:

Do not disconnect the shift lock control ECU connector.


If the result is not as specified, replace the shift lock control unit assembly.



c.

Inspect shift lock solenoid:

i.
C400831

Disconnect the shift lock solenoid connector.


ii.
C322125
1.51,2.729 1.646,2.729 1.646,2.729 1.813,2.125 true 2.083,2.125 2.25,2.698 2.25,2.698 2.406,2.698 true 1.292,2.646 1.906,2.844 0.615,0.198 10 false E2 2.448,2.615 3.063,2.813 0.615,0.198 10 false P 0.115,0.094 0.729,0.292 0.615,0.198 10 false *a
*a Front view of wire harness connector
(to Shift Lock Solenoid)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (P) - 3 (E2) Shift lever in P 10 kΩ or higher
Shift lever not in P Below 1 Ω


If the result is not as specified, replace the shift lock control unit assembly.


iii.
C322125
0.958,2.604 1.083,2.604 1.083,2.604 1.365,2.156 true 1.583,2.135 1.729,2.635 1.729,2.635 2.031,2.635 true 0.604,2.552 1.219,2.75 0.615,0.198 10 false SLS+ 2.104,2.594 2.719,2.792 0.615,0.198 10 false SLS- 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Shift Lock Solenoid)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SLS+) - 2 (SLS-) Always 112 Ω


If the result is not as specified, replace the shift lock control unit assembly.



Hide 3.INSPECT TRANSMISSION CONTROL SWITCH

a.
C411546

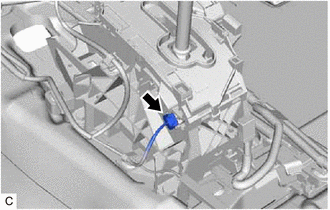

Disconnect the transmission control switch connector.


b.
C401772C04
0.677,1.542 1.24,1.271 true 1.031,1.771 1.49,1.281 true 2.75,1.531 2.188,1.26 true 2.438,1.771 1.979,1.281 true 1.802,1.781 1.729,1.292 true 1.646,1.813 2.146,2.01 0.5,0.198 10 false SFTU 2.49,1.729 2.667,1.917 0.177,0.188 10 false E 2.813,1.458 3.25,1.656 0.438,0.198 10 false SFTD 0.531,1.479 0.708,1.688 0.177,0.208 10 false S 0.073,0.052 0.292,0.25 0.219,0.198 10 false *a 0.865,1.719 1.219,1.927 0.354,0.208 10 false IG
*a Component without harness connected
(Transmission Control Switch)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (IG) - 5 (S) Shift lever in M, "+" or "-" Below 1 Ω
Shift lever not in M, "+" or "-" 10 kΩ or higher
3 (SFTU) - 2 (E) Shift lever held in "+"
(Up-shift) 		Below 1 Ω
Shift lever not held in "+"
(Up-shift) 		10 kΩ or higher
1 (SFTD) - 2 (E) Shift lever held in "-"
(Down-shift) 		Below 1 Ω
Shift lever not held in "-"
(Down-shift) 		10 kΩ or higher


If the result is not as specified, replace the shift lock control unit assembly.
