K313 CVT  PARK / NEUTRAL POSITION SWITCH  INSPECTION

0.594,0.521 0.823,0.521 0.823,0.521 1.115,0.99 true 1,0.25 1.167,0.25 1.167,0.25 1.354,0.948 true 2.167,0.25 1.833,0.25 1.833,0.25 1.625,0.938 true 2.583,0.5 2.333,0.5 2.333,0.5 2.042,1 true 2.167,2 1.917,2 1.917,2 1.792,1.479 true 1.083,2 1.25,2 1.25,2 1.406,1.479 true 0.833,1.833 1.083,1.833 1.083,1.833 1.24,1.469 true 2.229,0.208 2.594,0.448 0.365,0.24 10 RL 2.646,0.438 2.969,0.635 0.323,0.198 10 RB 0.469,0.469 0.813,0.656 0.344,0.188 10 B 0.729,1.75 1.198,1.938 0.469,0.188 10 L 2.24,1.927 2.76,2.094 0.521,0.167 10 DL 0.802,0.198 1.26,0.406 0.458,0.208 10 PL 0.917,1.948 1.25,2.094 0.333,0.146 10 NL 0.104,0.073 0.281,0.271 0.177,0.198 10 *a

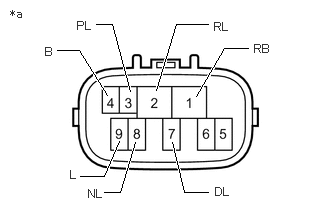

*a	Component without harness connected (Park/Neutral Position Switch Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
4 (B) - 9 (L)	Shift lever in P or N	Below 1 Ω
	Shift lever not in P or N	10 kΩ or higher
1 (RB) - 3 (PL)	Shift lever in P	Below 1 Ω
	Shift lever not in P	10 kΩ or higher
1 (RB) - 2 (RL)	Shift lever in R	Below 1 Ω
	Shift lever not in R	10 kΩ or higher
1 (RB) - 8 (NL)	Shift lever in N	Below 1 Ω
	Shift lever not in N	10 kΩ or higher
1 (RB) - 7 (DL)	Shift lever in D, M, "+" or "-"	Below 1 Ω
	Shift lever not in D, M, "+" or "-"	10 kΩ or higher

If the result is not as specified, replace the park/neutral position switch assembly.
