K313 CVT OIL PRESSURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during oil pressure sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of oil pressure sensor	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL LH

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201906,202304,_V1,_080956,_0392691,RM100000001HS26,202304,202307,_V1,_080956,_0392691,RM100000002B9S6,202307,999999,_V1,_080956,_0392691,RM100000002CWK9,

Hide Display 51410 2.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0388,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0388,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0388,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0388,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 51444A 3.REMOVE REAR ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0354,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0354,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0354,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0354,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0354,

Hide Display 89637K 4.REMOVE OIL PRESSURE SENSOR

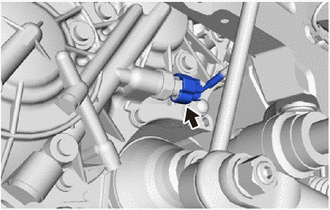

Disconnect the oil pressure sensor connector.

2.104,0.458 2.188,0.125 2.188,0.125 2.292,0.125 true 2.344,0.042 2.719,0.25 0.375,0.208 10 true SST

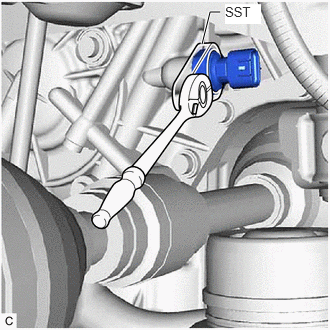

Using SST, remove the oil pressure sensor from the continuously variable transaxle assembly.

SST: 09326-22011
