RM3660EC _52 Drivetrain _080728 K313 CVT _0392270 REVOLUTION SENSOR A

K313 CVT REVOLUTION SENSOR REMOVAL

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Hide Display 51444A 2.REMOVE REAR ENGINE UNDER COVER LH

Hide Display 89413P 3.REMOVE TRANSMISSION REVOLUTION SENSOR (NIN)

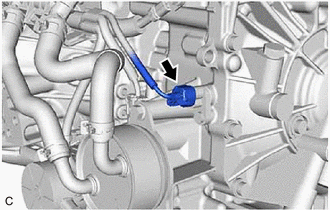

Disconnect the transmission revolution sensor (NIN) connector.

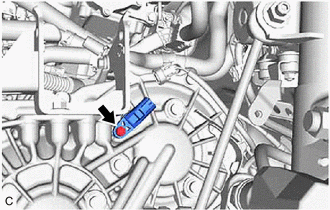

Remove the bolt and transmission revolution sensor (NIN) from the continuously variable transaxle assembly.

Remove the O-ring from the transmission revolution sensor (NIN).

Hide Display 89413M 4.REMOVE TRANSMISSION REVOLUTION SENSOR (NOUT)

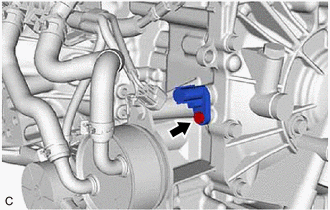

Disconnect the transmission revolution sensor (NOUT) connector.

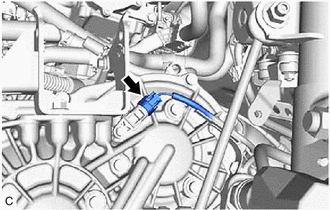

Remove the bolt and transmission revolution sensor (NOUT) from the continuously variable transaxle assembly.

Remove the O-ring from the transmission revolution sensor (NOUT).
