K313 CVT  REVOLUTION SENSOR  INSPECTION


PROCEDURE

Hide 89413P 1.INSPECT TRANSMISSION REVOLUTION SENSOR (NIN)

a.

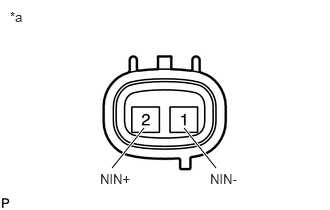

C221276C21
1.167,1.75 1.5,1.333 true 2.25,1.75 1.917,1.333 true 0.104,0.094 0.292,0.281 0.188,0.188 10 false *a 1.042,1.781 1.406,1.958 0.365,0.177 10 false NIN+ 2.188,1.781 2.594,1.958 0.406,0.177 10 false NIN-
*a Component without harness connected
(Transmission Revolution Sensor (NIN))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (NIN-) - 2 (NIN+) 20°C (68°F) 560 to 680 Ω


If the result is not as specified, replace the transmission revolution sensor (NIN).


Hide 89413M 2.INSPECT TRANSMISSION REVOLUTION SENSOR (NOUT)

a.

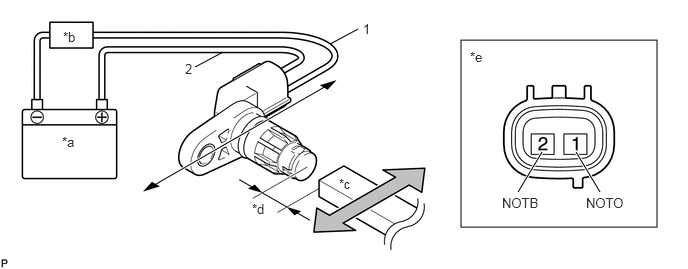

Connect the battery to the transmission revolution sensor (NOUT) as shown in the illustration.

C154686C61
4.802,0.417 6.844,2.365 2.042,1.948 3.438,0.458 3.729,0.302 false 2.031,0.698 2.323,0.542 false 5.396,2 5.646,1.583 true 6.25,2 6,1.583 true 0.656,0.302 0.896,0.469 0.24,0.167 10 false *b 1.927,0.635 2.031,0.771 0.104,0.135 10 false 2 3.781,0.219 3.875,0.365 0.094,0.146 10 false 1 0.646,1.396 0.833,1.563 0.188,0.167 10 false *a 2.625,2.094 2.844,2.302 0.219,0.208 10 false *d 3.531,1.833 3.719,2.042 0.188,0.208 10 false *c 4.896,0.51 5.083,0.719 0.188,0.208 10 false *e 5.229,2.031 5.844,2.229 0.615,0.198 10 false NOTB 6.104,2.031 6.719,2.229 0.615,0.198 10 false NOTO
*a Battery *b Ammeter
*c Magnetic Object *d 5 mm (0.197 in.) gap or closer
*e Component without harness connected
(Transmission Revolution Sensor (NOUT)) 		- -



b.

Wave a magnetic object left and right in front of the tip of the transmission revolution sensor (NOUT) (5 mm (0.197 in.) gap or closer) to change the high/low signals while measuring the current.

NOTICE:

Be sure to wave a magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



c.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (NOTO) - 2 (NOTB) Low Signal 4 to 8 mA
High Signal 12 to 16 mA


If the result is not as specified, replace the transmission revolution sensor (NOUT).
