RM3660EC _V1 General _080956 MAINTENANCE _0392145 NR Series SPARK PLUG A

MAINTENANCE NR Series SPARK PLUG REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of No. 1 ignition coil · Replacement of spark plug	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

PROCEDURE

Hide Display 55708 1.SEPARATE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>IGNITION COIL AND SPARK PLUG>REMOVAL201906,999999,_51,_080777,_0392342,RM100000001HQ2C_01_0009,

Hide Display 19500D 2.REMOVE NO. 1 IGNITION COIL

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>IGNITION COIL AND SPARK PLUG>REMOVAL201906,999999,_51,_080777,_0392342,RM100000001HQ2C_01_0003,

Hide Display 19100P 3.REMOVE SPARK PLUG

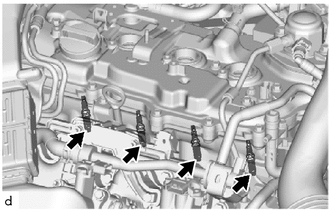

Remove the 4 spark plugs from the cylinder head sub-assembly.

NOTICE:: If a spark plug has been struck or dropped, replace it.

HINT:: Arrange the removed parts in the correct order.
