RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392104 LUGGAGE DOOR HINGE TORSION BAR A

DOOR / HATCH  LUGGAGE DOOR HINGE TORSION BAR  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

After installing the luggage door hinge torsion bar, use your hand to open and close the luggage door. Make sure the luggage door can open and close smoothly.


PROCEDURE

Hide 64127B 1.INSTALL LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT

a.

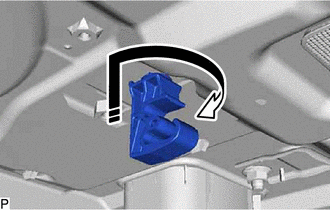

B534296C01
0,0 0,0 false
V113147

Install in this Direction


Install a new luggage compartment door torsion bar support as shown in the illustration.


Hide 64532 2.INSTALL LUGGAGE DOOR HINGE TORSION BAR LH

a.

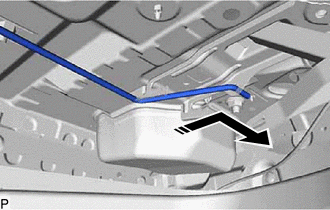

B534294C01
0,0 0,0 false
V113147

Install in this Direction


Connect the luggage door hinge torsion bar LH to the right side of the vehicle body as shown in the illustration.


b.

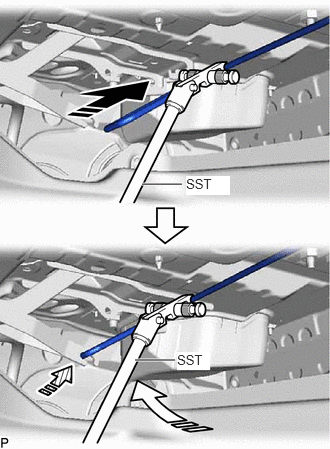

B534292C01
1.479,1.917 1.896,1.917 true 1.406,3.75 1.823,3.75 true 1.938,1.833 2.396,2.031 0.458,0.198 10 true SST 1.844,3.667 2.188,3.854 0.344,0.188 10 true SST
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3)


Using SST, install the luggage door hinge torsion bar LH to the luggage door hinge and the left side of the vehicle body as shown in the illustration.

SST
09804-24010  (09804-04010, 09804-04020, 09804-04030, 09804-04040)


c.

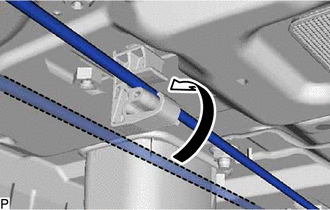

B534290

Connect the luggage door hinge torsion bar LH to the luggage compartment door torsion bar support as shown in the illustration.


Hide 64531 3.INSTALL LUGGAGE DOOR HINGE TORSION BAR RH

a.

for TFTM Made:

i.

Check the identification mark on the luggage door hinge torsion bar RH.

Identification Mark Color:
w/o Rear Spoiler:

Red

w/ Rear Spoiler:

Orange




b.

for GTMC Made:

i.

Check the identification mark on the luggage door hinge torsion bar RH.

Identification Mark Color:
w/o Rear Spoiler:

White

w/ Rear Spoiler:

Red




c.

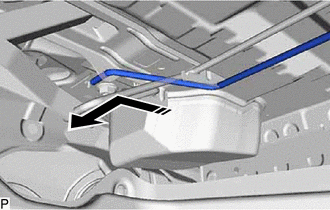

B534288C01
0,0 0,0 false
V113147

Install in this Direction


Connect the luggage door hinge torsion bar RH to the left side of the vehicle body as shown in the illustration.


d.

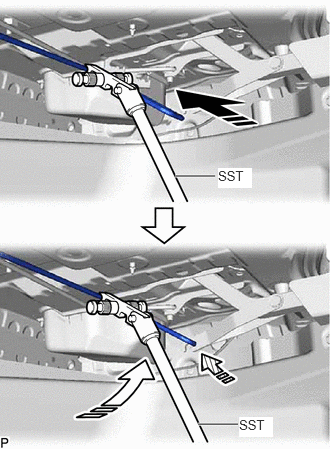

B534286C01
1.823,1.833 2.24,1.833 true 2.063,4.417 2.479,4.417 true 2.271,1.75 2.625,1.958 0.354,0.208 10 true SST 2.49,4.344 2.844,4.552 0.354,0.208 10 true SST
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3)


Using SST, install the luggage door hinge torsion bar RH to the luggage door hinge and the right side of the vehicle body as shown in the illustration.

SST
09804-24010  (09804-04010, 09804-04020, 09804-04030, 09804-04040)


e.

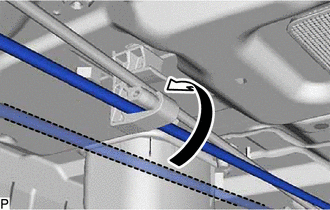

B534284

Connect the luggage door hinge torsion bar RH to the luggage compartment door torsion bar support as shown in the illustration.
