RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392104 LUGGAGE DOOR HINGE TORSION BAR A

DOOR / HATCH  LUGGAGE DOOR HINGE TORSION BAR  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

When the luggage door hinge torsion bars are removed, their tension will be lost, causing the luggage door to slam closed. Therefore, hold the luggage door securely when opening or closing it.


PROCEDURE

Hide 64531 1.REMOVE LUGGAGE DOOR HINGE TORSION BAR RH

a.

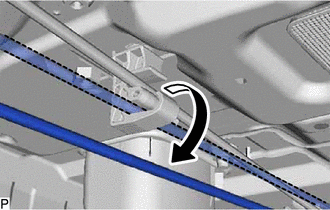

B534283

Disconnect the luggage door hinge torsion bar RH from the luggage compartment door torsion bar support as shown in the illustration.


b.

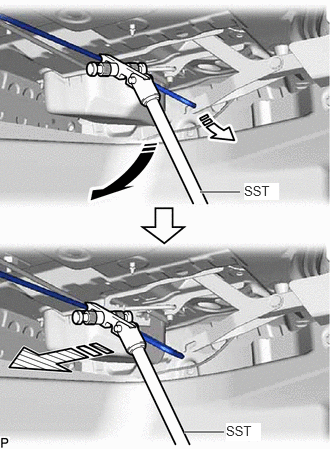

B534285C01
2.083,2 2.5,2 true 1.917,4.5 2.333,4.5 true 2.354,4.406 2.719,4.594 0.365,0.188 10 true SST 2.542,1.906 2.906,2.083 0.365,0.177 10 true SST
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3)


Using SST, disconnect the luggage door hinge torsion bar RH from the luggage door hinge and the right side of the vehicle body as shown in the illustration.

SST
09804-24010  (09804-04010, 09804-04020, 09804-04030, 09804-04040)


c.

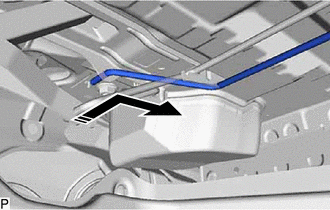

B534287C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the luggage door hinge torsion bar RH from the left side of the vehicle body as shown in the illustration.


Hide 64532 2.REMOVE LUGGAGE DOOR HINGE TORSION BAR LH

a.

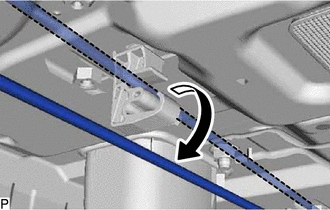

B534289

Disconnect the luggage door hinge torsion bar LH from the luggage compartment door torsion bar support as shown in the illustration.


b.

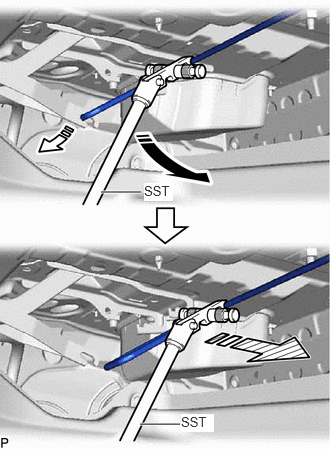

B534291C01
1.052,2 1.469,2 true 1.458,4.417 1.875,4.417 true 1.885,4.313 2.229,4.5 0.344,0.188 10 true SST 1.5,1.906 1.802,2.094 0.302,0.188 10 true SST
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3)


Using SST, disconnect the luggage door hinge torsion bar LH from the luggage door hinge and the left side of the vehicle body as shown in the illustration.

SST
09804-24010  (09804-04010, 09804-04020, 09804-04030, 09804-04040)


c.

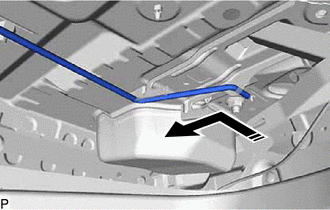

B534293C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the luggage door hinge torsion bar LH from the right side of the vehicle body as shown in the illustration.


Hide 64127B 3.REMOVE LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT

a.

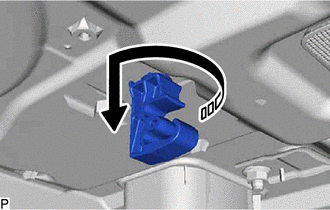

B534295C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the luggage compartment door torsion bar support as shown in the illustration.

NOTICE:

Make sure to replace the luggage compartment door torsion bar support with a new one.
