RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392103 LUGGAGE COMPARTMENT DOOR WEATHERSTRIP A

DOOR / HATCH  LUGGAGE COMPARTMENT DOOR WEATHERSTRIP  INSTALLATION


PROCEDURE

Hide 64461 1.INSTALL LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

a.
B514672

Make sure to remove any non-drying sealant from the installation surfaces on the vehicle body.

NOTICE:

If there is any non-drying sealant remaining on the vehicle body, the luggage compartment door weatherstrip may not be able to be securely installed and may fall off. Make sure to completely remove the non-drying sealant from both the interior side and exterior side installation surfaces on the vehicle body.



b.

Align the joint of a new luggage compartment door weatherstrip with the luggage compartment door lock striker and temporarily install the luggage compartment door weatherstrip.

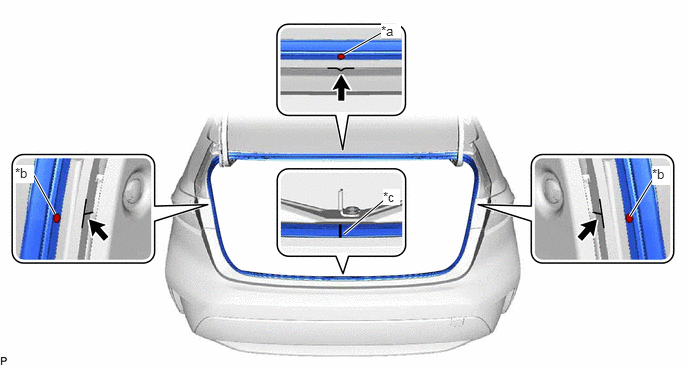

B536935C01
3.583,0.563 3.969,0.344 true 0.573,2.229 0.344,1.813 true 6.802,1.865 6.563,2.25 true 4,2.083 3.583,2.438 true 3.969,0.24 4.177,0.396 0.208,0.156 10 true *a 0.156,1.719 0.354,1.906 0.198,0.188 10 true *b 3.99,1.969 4.167,2.135 0.177,0.167 10 true *c 6.792,1.729 6.979,1.927 0.188,0.198 10 true *b
*a for TFTM Made:
Alignment Mark (Green)
for GTMC Made:
Alignment Mark (Red) 		*b Alignment Mark (White)
*c Joint - -
V100135

Flange Position - -



c.

Align the alignment marks on the luggage compartment door weatherstrip with the flanges on the vehicle body indicated by the arrows, and install the luggage compartment door weatherstrip.

NOTICE:
·

Make sure to position the alignment marks correctly during installation. Failure to do so may lead to water ingress.

·

After installation, check that the corners fit correctly.



HINT:

Make sure to install the parts of the luggage compartment door weatherstrip near the joint and alignment marks shown in the illustration first, and then install the corners.
