RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392102 LUGGAGE COMPARTMENT DOOR(for TFTM Made) N

DOOR / HATCH  LUGGAGE COMPARTMENT DOOR(for TFTM Made)  ADJUSTMENT


CAUTION / NOTICE / HINT

B507478C01
0.417,0.094 0.729,0.25 0.313,0.156 10 false *a 2,0.094 2.313,0.25 0.313,0.156 10 false *b
*a Centering Bolt
*b Standard Bolt


HINT:
·

Centering bolts are used to mount the door hinges to the door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.

·

Specified torque for standard bolts is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 1.INSPECT LUGGAGE COMPARTMENT DOOR

a.

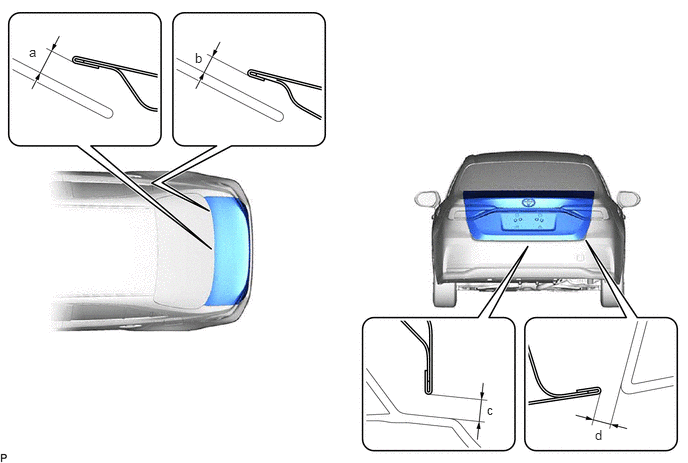

Check that the clearance measurements of areas a through d are within each standard range.

B544674N01
0.302,0.458 0.458,0.656 0.156,0.198 10 false a 2.031,0.521 2.188,0.719 0.156,0.198 10 false b 5.073,4.188 5.229,4.385 0.156,0.198 10 false c 6.198,4.448 6.354,4.646 0.156,0.198 10 false d

Standard Clearance
Area Measurement Area Measurement
a 7.95 mm (0.313 in.) b 7.15 mm (0.282 in.)
c 3.85 to 7.85 mm (0.152 to 0.309 in.) d 2.55 to 6.55 mm (0.100 to 0.258 in.)


Hide 5.ADJUST LUGGAGE COMPARTMENT DOOR

a.
B544666

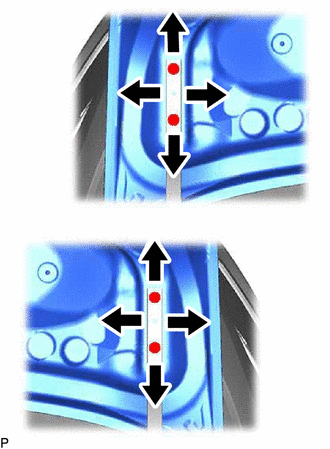

Loosen the 4 door side hinge bolts to adjust the door horizontally and vertically.


b.

Tighten the 4 bolts after adjustment.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)


c.
B544667

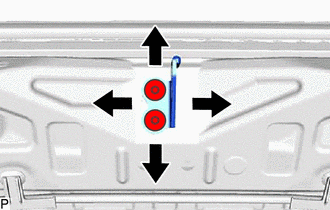

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.


d.

Using a brass bar and a hammer, hit the striker to adjust its position.


e.

Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)
