DOOR / HATCH  LUGGAGE COMPARTMENT DOOR(for GTMC Made)  ADJUSTMENT


CAUTION / NOTICE / HINT

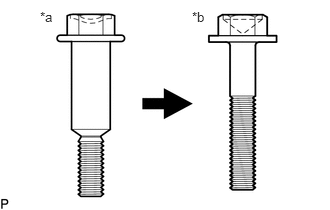

B507478C01
0.417,0.094 0.729,0.25 0.313,0.156 10 false *a 2,0.094 2.313,0.25 0.313,0.156 10 false *b
*a Centering Bolt
*b Standard Bolt


HINT:
·

Centering bolts are used to mount the door hinges to the door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.

·

Specified torque for standard bolts is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 1.INSPECT LUGGAGE COMPARTMENT DOOR

a.

Check that the clearance measurements of areas a through d are within each standard range.

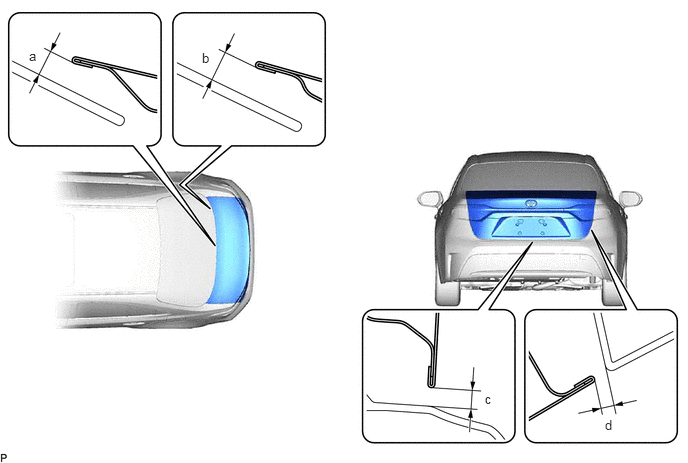

B544680N01
0.302,0.5 0.458,0.698 0.156,0.198 10 false a 2.104,0.521 2.26,0.719 0.156,0.198 10 false b 5.052,4.073 5.208,4.271 0.156,0.198 10 false c 6.302,4.344 6.458,4.542 0.156,0.198 10 false d

Standard Clearance
Area Measurement Area Measurement
a 7.85 mm (0.309 in.) b 8.05 mm (0.317 in.)
c 3.85 to 7.85 mm (0.152 to 0.309 in.) d 2.35 to 6.35 mm (0.0925 to 0.250 in.)


Hide 5.ADJUST LUGGAGE COMPARTMENT DOOR

a.

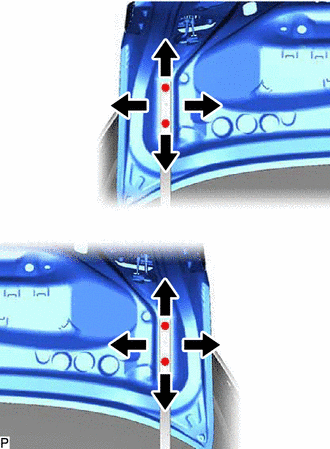

B544688

Loosen the 4 door side hinge bolts to adjust the door horizontally and vertically.


b.

Tighten the 4 bolts after adjustment.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)


c.

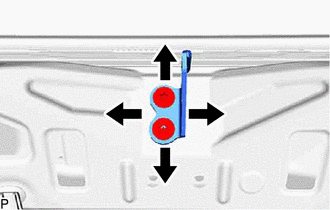

B544689

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.


d.

Using a brass bar and a hammer, hit the striker to adjust its position.


e.

Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)
