RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392092 REAR DOOR OPENING TRIM WEATHERSTRIP A

DOOR / HATCH REAR DOOR OPENING TRIM WEATHERSTRIP REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 73350C 1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0021,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0024,

Hide Display 2.REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0022,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0022,

Hide Display 72693 3.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0024,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0001,

Hide Display 67918A 4.REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0002,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0002,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0002,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0002,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0002,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67918A 5.REMOVE REAR DOOR SCUFF PLATE (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201906,202101,_58,_080744,_0394267,RM100000001I3Z5_02_0308,202101,202104,_58,_080744,_0394267,RM100000001TPQC_02_0308,202104,202205,_58,_080744,_0394267,RM100000001VMKZ_02_0308,202205,202304,_58,_080744,_0394267,RM1000000022HGH_02_0308,202304,202307,_58,_080744,_0394267,RM100000002BF4X_02_0308,202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 62332A 6.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

a.

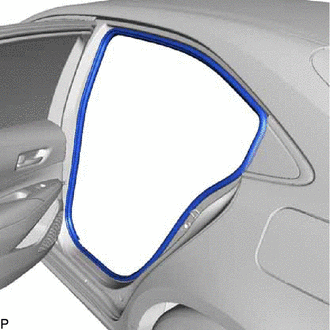

B545352

Remove the rear door opening trim weatherstrip.
