RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392090 FUEL LID OPENER SWITCH A

DOOR / HATCH FUEL LID OPENER SWITCH INSTALLATION

PROCEDURE

Hide Display 84841A 1.INSTALL FUEL LID OPENER SWITCH

a.

B534347C01

0,0 0,0 false

V113147

Install in this Direction

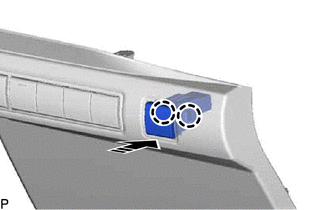

Engage the 2 claws to install the fuel lid opener switch as shown in the illustration.

Hide Display 55432B 2.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202007,_58,_080744,_0393716,RM100000001HZGU_01_0291,202007,202104,_58,_080744,_0393716,RM100000001R7UU_01_0291,202104,202304,_58,_080744,_0393716,RM100000001VMKT_01_0291,202304,999999,_58,_080744,_0393716,RM100000002B101_01_0291,

Hide Display 53601 3.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202007,_58,_080744,_0393716,RM100000001HZGU_01_0247,202007,202104,_58,_080744,_0393716,RM100000001R7UU_01_0247,202104,202304,_58,_080744,_0393716,RM100000001VMKT_01_0247,202304,999999,_58,_080744,_0393716,RM100000002B101_01_0247,

Hide Display 55606 4.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201906,202007,_58,_080744,_0393717,RM100000001HZH2_01_0100,202007,202101,_58,_080744,_0393717,RM100000001NS10_01_0100,202101,202104,_58,_080744,_0393717,RM100000001T6FU_01_0100,202104,202304,_58,_080744,_0393717,RM100000001VMKV_01_0100,202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0100,

Hide Display 55317E 5.INSTALL NO. 1 INSTRUMENT SIDE PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202007,_58,_080744,_0393716,RM100000001HZGU_01_0292,202007,202104,_58,_080744,_0393716,RM100000001R7UU_01_0292,202104,202304,_58,_080744,_0393716,RM100000001VMKT_01_0292,202304,999999,_58,_080744,_0393716,RM100000002B101_01_0292,
