Vehicle Exterior
_080735
DOOR / HATCH
_0392090
FUEL LID OPENER SWITCH
G
DOOR / HATCH FUEL LID OPENER SWITCH INSPECTION
PROCEDURE
84841A
1.INSPECT FUEL LID OPENER SWITCH
a.
0.927,1.75 1.177,1.323
true
1.396,1.75 1.396,1.323
true
2.031,1.75 2.031,1.323
true
2.5,1.75 2.25,1.323
true
0.167,0.167 0.5,0.417
0.333,0.25
10
false
*a
0.833,1.771 1.292,1.99
0.458,0.219
10
false
ILL+
2.438,1.771 2.896,1.99
0.458,0.219
10
false
ILL-
1.354,1.771 1.813,1.99
0.458,0.219
10
false
IG
1.99,1.771 2.448,1.99
0.458,0.219
10
false
E

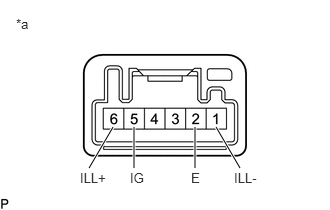

| *a | Component without harness connected
(Fuel Lid Opener Switch) |
Check the switch.
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 5 (IG) - 2 (E) Pressed (On) Below 1 Ω 5 (IG) - 2 (E) Not pressed (Off) 10 kΩ or higher
If the result is not as specified, replace the fuel lid opener switch.
b.
Check the switch illumination.
i.
Apply auxiliary battery voltage to the switch connector and check that the fuel lid opener switch illuminates.
- OK:
Auxiliary Battery Condition Specified Condition Auxiliary battery positive (+) → Terminal 6 (ILL+)
Auxiliary battery negative (-) → Terminal 1 (ILL-)Illumination illuminates
If the result is not as specified, replace the fuel lid opener switch.
