RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392090 FUEL LID OPENER SWITCH A

DOOR / HATCH FUEL LID OPENER SWITCH REMOVAL

PROCEDURE

Hide Display 55317E 1.REMOVE NO. 1 INSTRUMENT SIDE PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,202007,_58,_080744,_0393716,RM100000001HZGT_01_0010,202007,202104,_58,_080744,_0393716,RM100000001R7UQ_01_0010,202104,202205,_58,_080744,_0393716,RM100000001VMJZ_01_0010,202205,202304,_58,_080744,_0393716,RM1000000022YDK_01_0010,202304,202307,_58,_080744,_0393716,RM100000002B100_01_0010,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0010,

Hide Display 55606 2.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0060,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0060,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0060,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 53601 3.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,202007,_58,_080744,_0393716,RM100000001HZGT_01_0011,202007,202104,_58,_080744,_0393716,RM100000001R7UQ_01_0011,202104,202205,_58,_080744,_0393716,RM100000001VMJZ_01_0011,202205,202304,_58,_080744,_0393716,RM1000000022YDK_01_0011,202304,202307,_58,_080744,_0393716,RM100000002B100_01_0011,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0011,

Hide Display 55432B 4.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,202007,_58,_080744,_0393716,RM100000001HZGT_01_0044,202007,202104,_58,_080744,_0393716,RM100000001R7UQ_01_0044,202104,202205,_58,_080744,_0393716,RM100000001VMJZ_01_0044,202205,202304,_58,_080744,_0393716,RM1000000022YDK_01_0044,202304,202307,_58,_080744,_0393716,RM100000002B100_01_0044,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0044,

Hide Display 84841A 5.REMOVE FUEL LID OPENER SWITCH

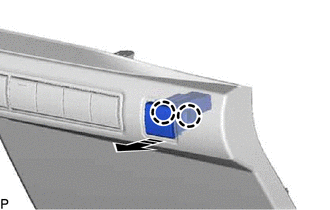

a.

B534346C01

0,0 0,0 false

V113147

Remove in this Direction

Disengage the 2 claws to remove the fuel lid opener switch as shown in the illustration.
