RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392089 FUEL LID OPENER MOTOR ASSEMBLY A

DOOR / HATCH  FUEL LID OPENER MOTOR ASSEMBLY  REMOVAL


PROCEDURE

Hide 77378A 1.REMOVE FUEL FILLER OPENING LID LOCK COVER

a.

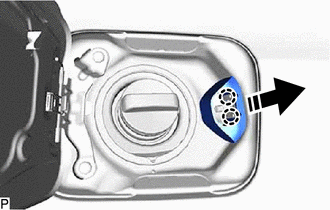

B534332C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and remove the fuel filler opening lid lock cover as shown in the illustration.


Hide 77377 2.REMOVE FUEL FILLER OPENING LID LOCK RETAINER

a.

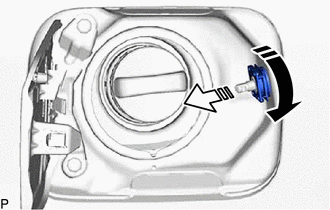

B534334C01
0,0 0,0 false
V113147

Turn in this Direction (1)
V113148

Remove in this Direction (2)


Turn and remove the fuel filler opening lid lock retainer as indicated by the arrows, in the order shown in the illustration.


Hide 77030A 3.REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

a.

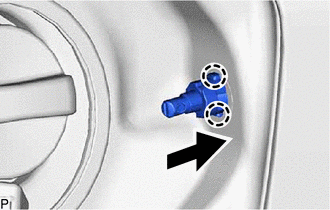

B534336

Disengage the 2 claws as shown in the illustration.


b.

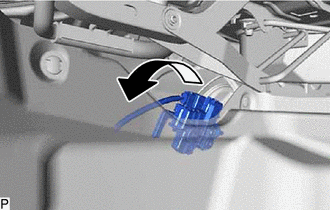

B544669

Pull the fuel lid lock with motor assembly as shown in the illustration.


c.

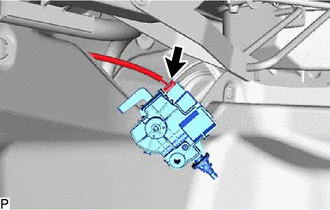

B544671

Disconnect the connector to remove the fuel lid lock with motor assembly.
