DOOR / HATCH  FUEL LID OPENER MOTOR ASSEMBLY  INSPECTION


PROCEDURE

Hide 77030A 1.INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY

a.

Check the operation of the fuel lid lock with motor assembly (motor operation).

i.

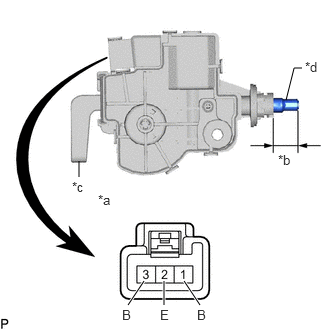

B544672C01
3.146,0.708 3.063,0.708 3.063,0.708 2.979,1.042 false 0.823,1.844 0.823,1.677 false 1.333,3.177 1.5,2.927 true 1.708,3.177 1.708,2.927 true 2.083,3.177 1.917,2.927 true 1.021,2 1.333,2.198 0.313,0.198 10 false *a 2.896,1.583 3.208,1.781 0.313,0.198 10 false *b 0.75,1.865 1.063,2.063 0.313,0.198 10 false *c 3.177,0.615 3.427,0.865 0.25,0.25 10 false *d 1.271,3.198 1.583,3.396 0.313,0.198 10 false B 2.052,3.198 2.365,3.396 0.313,0.198 10 false B 1.667,3.198 1.979,3.396 0.313,0.198 10 false E
*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)
*b Shaft Stroke
*c Lever
*d Shaft


Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and check the operation of the fuel lid lock with motor assembly.

Standard:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal 1 (B)
Auxiliary battery negative (-) → Terminal 2 (E) 		16.05 mm
(0.632 in.)


If the result is not as specified, replace the fuel lid lock with motor assembly.



b.

Check the operation of the fuel lid lock with motor assembly (fuel lid courtesy switch).

i.

Measure the resistance according the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
2 (E) - 3 (B) Shaft not pushed (ON) Below 1 Ω
2 (E) - 3 (B) Shaft pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the fuel lid lock with motor assembly.



c.

Measure the shaft stroke.

Standard:
Area Condition Specified Condition
Shaft stroke Lever pulled 16.05 mm
(0.632 in.)


If the result is not as specified, replace the fuel lid lock with motor assembly.
