RM3660EC _59 Vehicle Exterior _080735 DOOR / HATCH _0392089 FUEL LID OPENER MOTOR ASSEMBLY A

DOOR / HATCH  FUEL LID OPENER MOTOR ASSEMBLY  INSTALLATION


PROCEDURE

Hide 77030A 1.INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY

a.

Apply MP grease to the sliding parts of the fuel lid lock with motor assembly.


b.

Connect the connector.

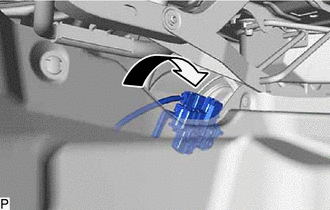

c.
B544670

Temporarily install the fuel lid lock with motor assembly as shown in the illustration.

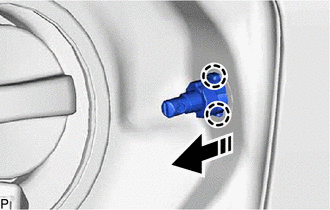

d.
B534337C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the fuel lid lock with motor assembly as shown in the illustration.

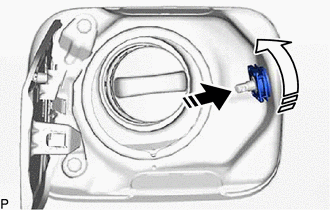

Hide 77377 2.INSTALL FUEL FILLER OPENING LID LOCK RETAINER

a.
B534335C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Turn in this Direction (2)


Install the fuel filler opening lid lock retainer as shown in the illustration.

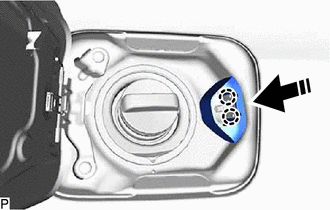

Hide 77378A 3.INSTALL FUEL FILLER OPENING LID LOCK COVER

a.
B534333C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the fuel filler opening lid lock cover as shown in the illustration.
