THEFT DETERRENT / KEYLESS ENTRY TRANSPONDER KEY AMPLIFIER REMOVAL
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
89782
2.REMOVE TRANSPONDER KEY COIL
a.
0,0 0,0
false
|

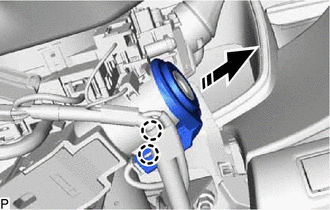

Remove in this Direction |
Disengage the 2 claws and disconnect the transponder key coil as shown in the illustration.
b.
Disconnect the connector to remove the transponder key coil.
