RM3660EC _58 Vehicle Interior _080729 DOOR LOCK _0392013 LUGGAGE COMPARTMENT DOOR LOCK A

DOOR LOCK  LUGGAGE COMPARTMENT DOOR LOCK  INSTALLATION


PROCEDURE

Hide 64610 1.INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

a.

Apply MP grease to the sliding parts of the luggage compartment door lock assembly.


b.
B544824C01
0,0 0,0 false
V113147

Install in this Direction

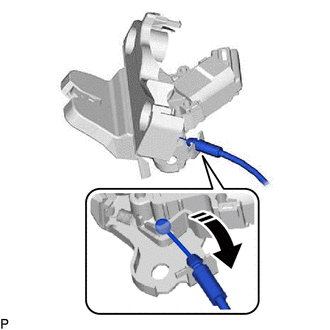

Connect the luggage door lock control cable sub-assembly to the luggage compartment door lock assembly.


c.
B544822

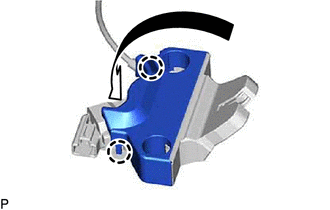

Engage the 2 claws as shown in the illustration.


d.

Install the luggage compartment door lock assembly with the 2 bolts.

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)


e.

Connect the connector.
