DOOR LOCK LUGGAGE COMPARTMENT DOOR LOCK REMOVAL

PROCEDURE

Hide Display 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER (for TFTM Made)

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR (for TFTM Made)>DISASSEMBLY201906,202307,_59,_080735,_0392102,RM100000001HO15_01_0030,202307,999999,_59,_080735,_0392102,RM100000002D3P8_01_0030,

Hide Display 64719A 2.REMOVE LUGGAGE COMPARTMENT DOOR COVER (for GTMC Made)

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR (for GTMC Made)>DISASSEMBLY201906,202307,_59,_080735,_0392101,RM100000001HO11_01_0075,202307,999999,_59,_080735,_0392101,RM100000002D3PA_01_0075,

Hide Display 64610 3.REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

a.

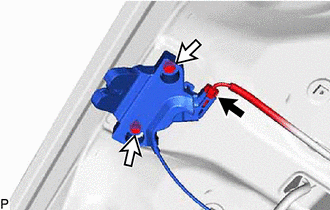

B544820

Disconnect the connector.

b.

Remove the 2 bolts and disconnect the luggage compartment door lock assembly.

c.

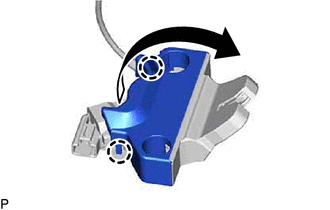

B544821

Disengage the 2 claws as shown in the illustration.

d.

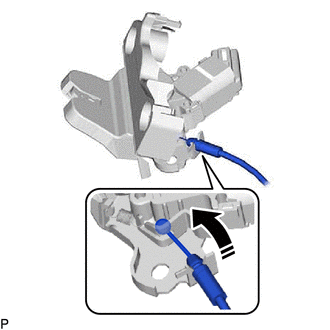

B544823C01

0,0 0,0 false

V113147

Remove in this Direction

Disconnect the luggage door lock control cable sub-assembly to remove the luggage compartment door lock assembly as shown in the illustration.
