RM3660EC _58 Vehicle Interior _080729 DOOR LOCK _0392013 LUGGAGE COMPARTMENT DOOR LOCK G

DOOR LOCK  LUGGAGE COMPARTMENT DOOR LOCK  INSPECTION


PROCEDURE

Hide 64610 1.INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

a.

Check the operation of the door lock motor.

i.

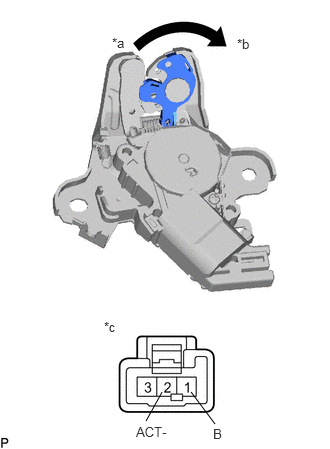

B544825C01
2.24,4.417 1.99,4.083 false 1.521,4.385 1.688,4.083 false 1.167,0.365 1.479,0.521 0.313,0.156 10 false *a 2.469,0.375 2.781,0.531 0.313,0.156 10 false *b 1.083,3.323 1.396,3.479 0.313,0.156 10 false *c 2.219,4.438 2.833,4.635 0.615,0.198 10 false B 1.417,4.417 1.719,4.604 0.302,0.188 10 false ACT-
*a Close (Lock)
*b Open (Unlock)
*c Component without harness connected
(Luggage Compartment Door Lock Assembly)


Move the door lock to the close (lock) position.


ii.

Apply auxiliary battery voltage to the door lock motor and check the operation of the door lock motor.

OK:
Auxiliary Battery Connection Result
Auxiliary battery positive (+) → Terminal 1 (B)
Auxiliary battery negative (-) → Terminal 2 (ACT-) 		Luggage compartment door lock motor open (unlock) operation


If the result is not as specified, replace the luggage compartment door lock assembly.



b.

Check the operation of the luggage compartment door courtesy switch.

i.

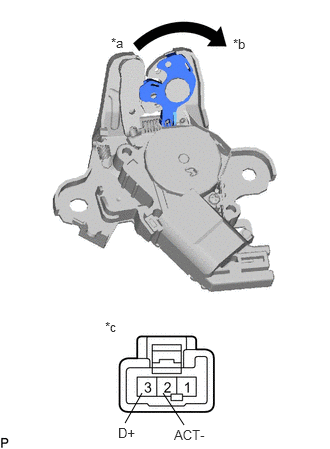

B544825C02
1.917,4.427 1.698,4.094 false 1.302,4.406 1.479,4.094 false 1.156,0.365 1.469,0.521 0.313,0.156 10 false *a 2.427,0.375 2.74,0.531 0.313,0.156 10 false *b 1.094,3.323 1.406,3.479 0.313,0.156 10 false *c 1.813,4.448 2.333,4.615 0.521,0.167 10 false ACT- 1.229,4.427 1.542,4.625 0.313,0.198 10 false D+
*a Close (Lock)
*b Open (Unlock)
*c Component without harness connected
(Luggage Compartment Door Lock Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
2 (ACT-) - 3 (D+) Closed (Locked) 10 kΩ or higher
2 (ACT-) - 3 (D+) Open (Unlocked) Below 1 Ω


If the result is not as specified, replace the luggage compartment door lock assembly.
