Vehicle Interior
_080729
DOOR LOCK
_0392010
UNLOCK WARNING SWITCH
A
DOOR LOCK UNLOCK WARNING SWITCH REMOVAL
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
84052
2.REMOVE UNLOCK WARNING SWITCH ASSEMBLY
a.
Insert the key into the ignition key cylinder.
b.
Disconnect the connector.
c.
0,0 0,0
false
|

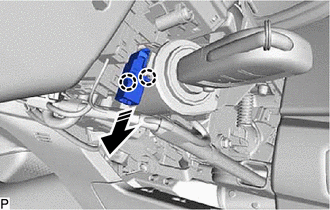

Remove in this Direction |
Disengage the 2 claws and remove the unlock warning switch assembly as shown in the illustration.
