NR Series ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  REMOVAL

0.542,3.219 1,3.219 true 1.448,3.271 1.896,3.271 true 0.438,0.406 2.333,0.177 2.333,0.177 1.844,1.854 true 1.531,1.667 2.323,0.177 false 0.344,3.146 0.573,3.365 0.229,0.219 10 false *a 1.958,3.208 2.271,3.365 0.313,0.156 10 false *b 2.406,0.115 2.865,0.313 0.458,0.198 10 false SST

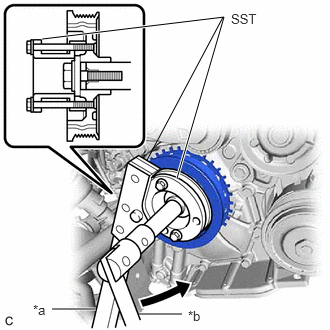

*a	Hold
*b	Turn

Using SST, hold the crankshaft pulley assembly and loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.

SST

09213-70011  (09213-70020)
09330-00021

1.917,2.094 2.135,1.146 2.135,1.146 1.25,0.823 true 1.938,2.552 2.833,0.938 2.833,0.938 0.927,0.313 true 2.219,1.073 2.531,1.229 0.313,0.156 10 false *1 0.156,1.76 0.469,1.917 0.313,0.156 10 false *a 1.604,3.229 1.917,3.385 0.313,0.156 10 false *b 2.885,0.875 3.344,1.073 0.458,0.198 10 false SST

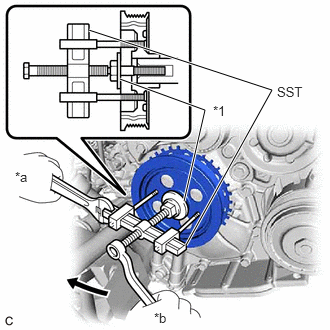

*1	Crankshaft Pulley Set Bolt
*a	Hold
*b	Turn

Using SST and the crankshaft pulley set bolt, remove the crankshaft pulley assembly and crankshaft pulley set bolt.

SST

09950-50013  (09951-05010, 09952-05010, 09953-05020, 09954-05021)

NOTICE:

Apply lubricant to the threads and end of SST.

2.333,1.042 2.771,1.042 true 2.844,0.969 3.156,1.125 0.313,0.156 10 true *a

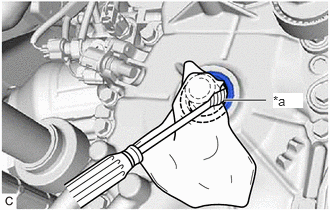

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.

NOTICE:

After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
