NR Series ENGINE MECHANICAL  CYLINDER HEAD GASKET  INSTALLATION

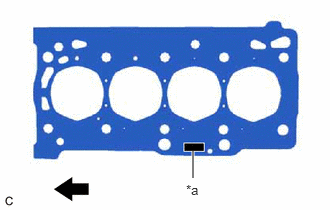

2.01,1.854 2.01,1.573 true 1.938,1.896 2.25,2.052 0.313,0.156 10 false *a

*a	Lot No.
	Front of Engine

Place a new cylinder head gasket on the cylinder block sub-assembly as shown in the illustration.

NOTICE:

·

Remove any oil from the contact surfaces.

·

Make sure to install the cylinder head gasket in the correct direction.

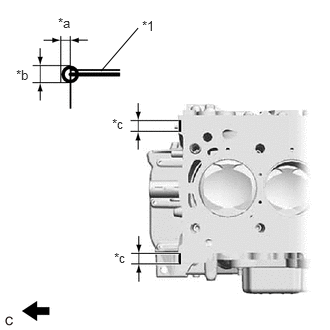

1.052,0.74 1.438,0.292 false 1.479,0.188 1.792,0.344 0.313,0.156 10 false *1 0.604,0.156 0.917,0.313 0.313,0.156 10 false *a 0.167,0.698 0.479,0.854 0.313,0.156 10 false *b 1.167,1.208 1.479,1.365 0.313,0.156 10 false *c 1.188,2.604 1.5,2.76 0.313,0.156 10 false *c

*1	Cylinder Head Gasket
*a	4 to 7 mm (0.157 to 0.276 in.)
*b	7 to 10 mm (0.276 to 0.394 in.)
*c	6.5 to 8 mm (0.256 to 0.315 in.)
	Front of Engine

Apply seal packing to the cylinder head gasket as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

NOTICE:

·

Remove any oil from the contact surfaces.

·

Install the cylinder head gasket within 3 minutes and tighten the cylinder head set bolts within 15 minutes of applying seal packing.
