SEAT BELT  CHILD RESTRAINT SEAT ANCHOR BRACKET  INSTALLATION

73706 1.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

a.

0.438,0.573 0.583,0.729 0.146,0.156 10 true A 2.948,0.656 3.094,0.813 0.146,0.156 10 true B

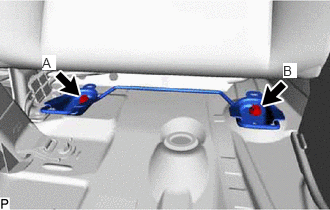

Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

b.

Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly LH.

Torque:

19.5 N*m (199 kgf*cm, 14 ft.*lbf)

c.

Engage the clamp.

73705 2.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

a.

3.135,1.01 3.302,1.198 0.167,0.188 10 true A 0.271,0.698 0.438,0.885 0.167,0.188 10 true B

Temporarily install the child restraint seat anchor bracket sub-assembly RH with the 2 bolts.

b.

Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly RH.

Torque:

19.5 N*m (199 kgf*cm, 14 ft.*lbf)

72693 3.INSTALL REAR SEAT CUSHION LOCK HOOK (for Fixed Seat Type)

4.INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)

73350C 5.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fixed Seat Type)

72693 6.INSTALL REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

7.INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

73350C 8.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)
