SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73370 1.INSPECT REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY

a.

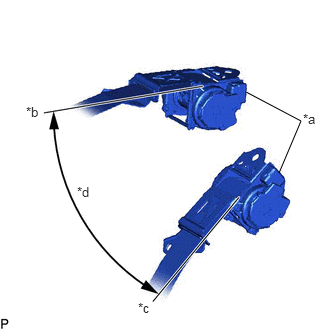

B534416C01
2.563,0.958 3.135,1.26 3.135,1.26 2.906,1.802 false 3.156,1.156 3.385,1.396 0.229,0.24 10 false *a 0.271,1.083 0.583,1.281 0.313,0.198 10 false *b 1.438,3.125 1.75,3.323 0.313,0.198 10 false *c 0.802,1.917 1.115,2.115 0.313,0.198 10 false *d
*a Retractor
*b Unlock
*c Lock
*d 45°


Before installing the rear 3 point type seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear 3 point type seat outer belt assembly.
