SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for RH Side) INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
-
Wear protective gloves. Sharp areas on the parts may injure your hands.
PROCEDURE
73380

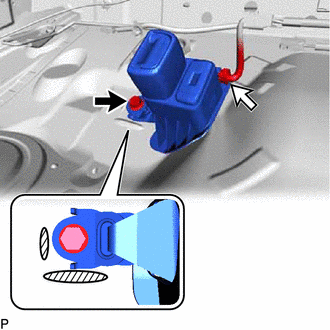

1.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
|
Bolt |
|
Connector |
|
Protruding Part |
Install the rear seat 3 point type belt assembly RH with the bolt.
- Torque:
- 42 N*m (428 kgf*cm, 31 ft.*lbf)
- NOTICE:
-
Do not allow the anchor part of the rear seat 3 point type belt assembly RH to overlap the protruding parts of the vehicle body.
Connect the connector.
72693
2.INSTALL REAR SEAT CUSHION LOCK HOOK (for Fixed Seat Type)
3.INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)
for HV Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0022,
for Gasoline Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0021,
73350C
4.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fixed Seat Type)
72693
5.INSTALL REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)
6.INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)
for HV Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0043,
for Gasoline Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0021,
73350C
7.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)
